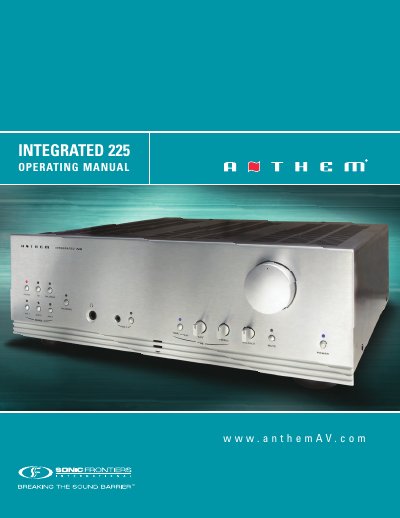

This document is the INTEGRATED 225 operating manual, which mainly introduces the safety precautions of the product. It warns users not to expose the product to rain or moisture, and not to place objects filled with liquids on the product. It also emphasizes the importance of matching the plug to the socket and providing adequate ventilation to prevent overheating. Qualified service personnel should be consulted for cover removal or servicing.
This manual begins with extensive safety precautions, covering electric shock warnings, proper ventilation, grounding, and handling of power cords. It also details how to protect the unit from moisture, lightning, and improper use, and outlines the steps for safe servicing and replacement parts.
The later sections describe the front and rear panel layouts, including volume, balance, tone controls, and input/output connectors such as XLR balanced input, 5 RCA inputs, a phono input, RS‑232 interface, and a 12 V trigger. Remote‑control functions and battery‑low indicators are also explained, helping users operate the Integrated 225 with confidence.
| Power Supply | 2 AA Batteries (included) |
|---|---|
| Power Cord | Supplied North America power cord |
| Balanced Input | XLR (balanced) input |
| RCA Inputs | 5 RCA line‑level inputs |
| Phono Input | Phono input with ground connection |
| Trigger | 12 V trigger in/out |
| Control Interface | RS‑232 interface for custom control systems |
No. The manual states there are no user‑serviceable parts and the cover must not be opened.
Only the supplied power cord should be used to connect the unit to AC power.
No. The front‑panel power button does not disconnect the product from the AC line; the power cord must remain accessible.
