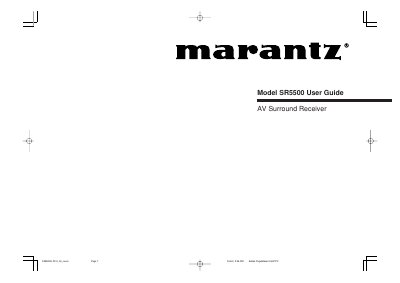

This document is the user guide for the SR5500 AV Surround Receiver, describing the features and characteristics of the product.
This manual introduces the Marantz SR5500 AV Surround Receiver, covering safety precautions, installation clearances, and basic handling guidelines. It explains how to connect speakers, audio/video components, and antenna systems while complying with electrical codes.
The guide details the receiver’s features such as a 7‑channel amplifier delivering 90 W per channel, advanced digital surround decoding (Dolby, DTS, Pro Logic IIx, Circle Surround II), RS‑232C communication, and extensive input options. It also includes remote‑control programming, multi‑room setup, on‑screen menu navigation, and troubleshooting tips.
| Amplifier Power | 90 watts per channel |
|---|---|
| Number of Channels | 7 channel amplifier section |
| Digital‑to‑Analog Converter | Crystal ® 192 kHz/24 bit |
| Communication Port | RS‑232C |
| Digital Inputs | 4 assignable digital inputs |
Leave at least 20 cm (8 inches) of space between the top, back and sides of the unit and the wall or other components.
Each channel can deliver 90 watts of high‑current amplification.
