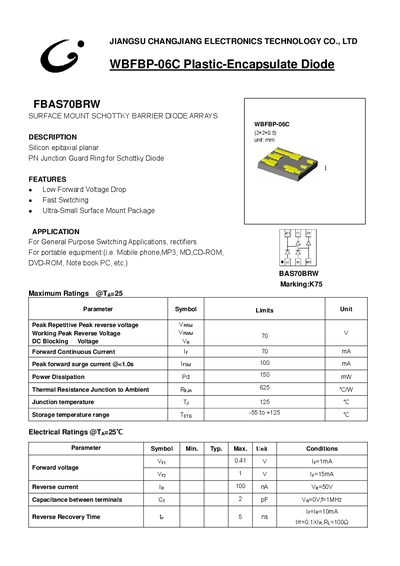

This data sheet introduces a Schottky diode with the model WBFBP-06C. The diode features low voltage drop, fast response and small size, and is suitable for general-purpose switching applications and rectifiers.
The WBFBP-06C is a plastic‑encapsulated, surface‑mount Schottky barrier diode array designed for general‑purpose switching and rectifier applications, including portable equipment such as mobile phones, MP3 players, and notebook PCs. It features a low forward voltage drop, fast switching speed, and an ultra‑small 2 mm × 2 mm × 0.5 mm package.
The datasheet lists key electrical ratings: a peak reverse voltage of 70 V, forward continuous current of 70 mA, peak forward surge current of 100 mA, power dissipation of 150 mW, and a reverse recovery time of 5 ns. Package outline dimensions and land‑pattern recommendations are also provided.
| Peak Reverse Voltage | 70 V |
|---|---|
| Forward Continuous Current | 70 mA |
| Power Dissipation | 150 mW |
| Thermal Resistance (J‑A) | 625 °C/W |
| Junction Temperature | 125 °C |
| Storage Temperature Range | -55 to +125 °C |
| Forward Voltage @ 1 mA | 0.41 V |
| Reverse Current @ 50 V | 100 nA |
| Capacitance (C‑junction) | 2 pF |
| Reverse Recovery Time | 5 ns |
| Package Size | 2 mm × 2 mm × 0.5 mm |
| Marking Code | K75 |
The diode can withstand a peak reverse voltage of 70 V.
It is rated for a forward continuous current of 70 mA.
The typical forward voltage is 0.41 V at a forward current of 1 mA.
The package measures 2 mm × 2 mm × 0.5 mm.
