This document introduces a low-frequency function generator with a frequency range of 0.222 Hz to 2 MHz. The product complies with the safety standard NF EN 61010-1 (2001) for electronic measuring instruments. Please read the manual carefully and follow the instructions for use.

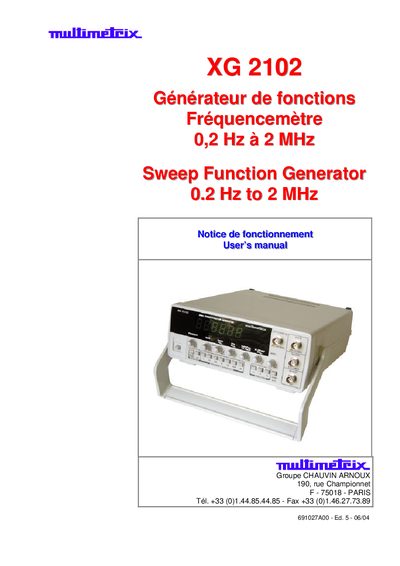

This manual introduces the XG 2102 function generator, a low‑frequency instrument that combines a function generator, sweep generator, pulse generator and frequency counter. It provides guidance on safe installation, operation, and maintenance for indoor use under IEC‑defined conditions.
The document details front‑panel controls, technical specifications, environmental limits, accessories supplied, and warranty information, helping users configure waveforms, frequency ranges, and input settings correctly. This manual is written in French.
| Frequency range | 0.02 Hz to 2 MHz |
|---|---|
| Output level (open‑circuit) | +10 V |
| Output level (50 Ω load) | +5 V |
| Output impedance | 50 Ω ±5 % |
| Attenuator | 20 dB fixed and continuously variable |
| Sinusoidal distortion | < 1 % from 0.2 Hz to 100 kHz |
| Square‑wave rise/fall time | < 120 ns |
| COUNT IN input max voltage | 250 V |
| VCF input max voltage | 10 V |
| Dimensions | 255 mm × 255 mm × 90 mm |
| Weight | ≈ 2 kg |
The XG 2102 covers 0.02 Hz to 2 MHz.
Both inputs are allowed on CAT I installations only; they must not be used on CAT II, CAT III or CAT IV.
Unscrew the fuse holder at the back (marked 22) and replace it with a 200 mA / 250 V fuse.
The COUNT IN input must not exceed 250 V.
