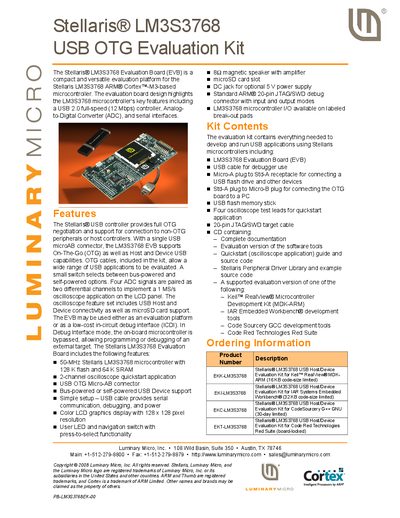

The LM3S3768 EVB is a compact and versatile evaluation platform for the Stellaris LM3S3768 ARM® Cortex™-M3-based microcontroller.
The Stellaris LM3S3768 Evaluation Board is a compact platform for the LM3S3768 ARM Cortex‑M3 microcontroller. It highlights key features such as a USB 2.0 full‑speed controller, ADC, serial interfaces, and a 2‑channel oscilloscope application on a 128 × 128 pixel LCD.
The kit includes the evaluation board, USB cables, connectors, a micro‑AB plug, a microSD card slot, power options, and a CD with documentation, software tools, and example code. It can be used as a development platform or as a low‑cost in‑circuit debug interface.
| Microcontroller | 50‑MHz Stellaris LM3S3768 with 128 KB flash, 64 KB SRAM |
|---|---|
| USB Controller | USB 2.0 full‑speed (12 Mbps) |
| Oscilloscope Application | 2‑channel quick‑start oscilloscope |
| USB Connector | USB OTG Micro‑AB connector |
| Power Options | Bus‑powered or self‑powered USB device support |
| Display | Color LCD graphics display, 128 × 128 pixel resolution |
| Memory Card Slot | microSD card slot |
| Power Supply Jack | DC jack for optional 5 V power supply |
| Debug Connector | Standard ARM 20‑pin JTAG/SWD debug connector |
It uses the Stellaris LM3S3768 microcontroller, a 50‑MHz ARM Cortex‑M3 device with 128 KB flash and 64 KB SRAM.
The kit supports USB OTG, host, and device modes via a micro‑AB connector, and can operate bus‑powered or self‑powered.
A color LCD graphics display with a resolution of 128 × 128 pixels is provided.
A standard ARM 20‑pin JTAG/SWD debug connector is provided for both input and output debugging modes.
