100 Series LCD Case - Flat Bottom
The 100 Series LCD Case-Flat Bottom is a versatile enclosure featuring a recessed area for a membrane keypad and multiple battery configurations. It offers several material choices, fire‑retardant ratings, and dimensions to suit various applications.

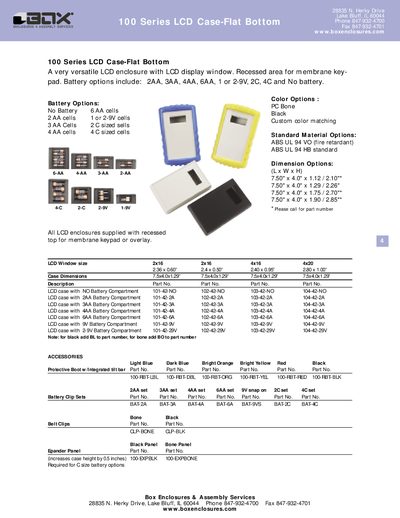

The handbook lists available accessories such as protective boots, battery clip sets, belt clips, and panel extensions, along with color options and part numbers for ordering. Contact information for Box Enclosures is provided for further assistance.
| Dimensions | 7.50" x 4.0" x 1.12 /2.10"* |
|---|---|
| Material (fire‑retardant) | ABS UL 94 VO |
| Material (standard) | ABS UL 94 HB |
| LCD Window Size | 2x16, 2x16, 4x16, 4x20 |
| Color Options | Light Blue, Dark Blue, Bright Orange, Bright Yellow, Red, Black |
| Ingress Protection | NEMA 4 / IP65 |
| Protective Boot | Integrated tiltbar |
The case measures 7.50" × 4.0" × 1.12 / 2.10" (depth varies by model).
Both ABS UL 94 VO (fire‑retardant) and ABS UL 94 HB standard are available.
Available colors include Light Blue, Dark Blue, Bright Orange, Bright Yellow, Red, and Black.
