Bungard CCD User Manual

This manual is the user manual for CCD MANUAL produced by Mega Electronics Ltd.

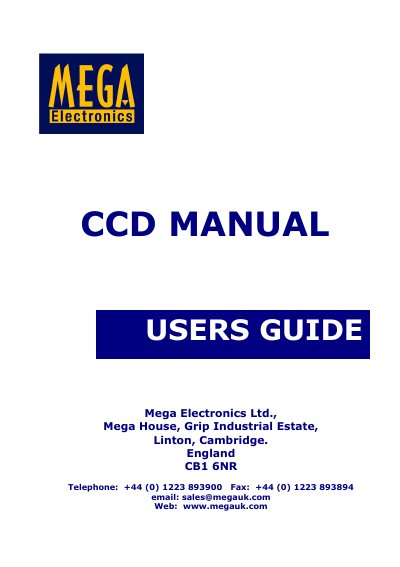

Bungard CCD User Manual - cover page
Brand
MEGA
Category
Industrial Supply
Document type
User Manual
Language
English
Pages
29
File format
PDF
File size
319 KB
Published
03 May, 2012
Updated
30 September, 2023
MD5 checksum
8D052C11D51AC979798A5A3A3156811F
PDF
Bungard CCD User Manual PDF

About this manual

This guide explains how to safely operate the Bungard CCD CNC drilling machine, covering required safety measures, emergency stop procedures, and environmental conditions. It also details the machine's intended applications such as drilling, routing printed circuit boards, and engraving aluminium plates.

The document walks through hardware installation—including power supply, cable connections, spindle mounting, and tool change—followed by software setup, quick‑start usage, tool configuration, and routine maintenance. Troubleshooting tips and error messages are provided to help resolve common issues.

What's inside

  • Introduction
  • Control Unit and Mechanics
  • Mechanics Unit
  • Software Installation
  • Quick‑Start
  • Tool Change
  • Maintenance
  • Troubleshooting
  • Safety Information

Specifications

Power supply230 V 50 Hz
Spindle power125 W HF generator
Serial interfaceRS‑232 (COM2)
Noise level86 dB(A) at 1 m
Vacuum cleaner power500 W max
Compressed air requirement≥ 5 bar
Operating temperature10 °C – 30 °C

Frequently asked questions

What power source does the CCD machine require?

It must be connected to a 230 V 50 Hz mains outlet.

What compressed air pressure is needed for tool change?

At least 5 bar of compressed air is required.

What is the noise level of the machine during operation?

The noise level is 86 dB(A) measured at a distance of 1 meter.
