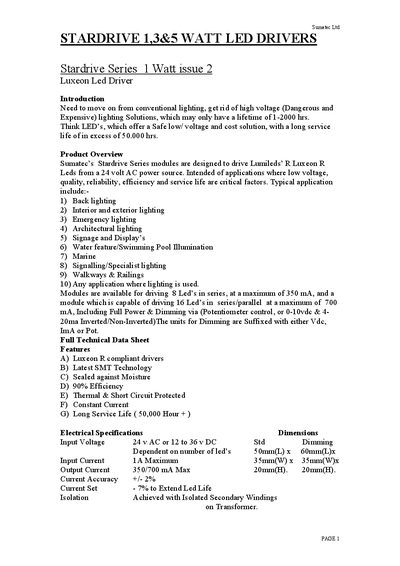

Stardrive Series 1 Watt issue 2 Luxeon Led Driver is a driver produced by Sumatec Ltd, this driver uses Luxeon R Leds, can drive 8 Leds, maximum current 350 mA, with low voltage, high quality, high reliability, high efficiency and long life characteristics.
The Sumatec Stardrive Series LED drivers are designed to drive Lumileds Luxeon R LEDs from a 24 V AC (or 12‑36 V DC) source. They are offered in 1 W, 3 W and 5 W versions, supporting 8‑16 LEDs in series/parallel with constant‑current output and optional dimming via potentiometer, 0‑10 V or 4‑20 mA.
Key features include 90 % efficiency, sealed construction, thermal and short‑circuit protection, and a service life exceeding 50 000 hours. Electrical specifications such as input voltage, output current, and accuracy are provided for each power rating.
| Input Voltage | 24 V AC or 12‑36 V DC |
|---|---|
| Output Current | 350 mA / 700 mA (max) |
| Input Current | 1 A Max |
| Current Accuracy | ± 2 % |
| Efficiency | 90 % |
| Service Life | ≥ 50 000 hours |
| Protection | Thermal & Short‑Circuit Protected |
It operates from 24 V AC or from 12 V to 36 V DC.
The drivers can deliver up to 350 mA or 700 mA depending on the model.
They achieve an efficiency of about 90 %.
They are rated for a service life of over 50 000 hours.
