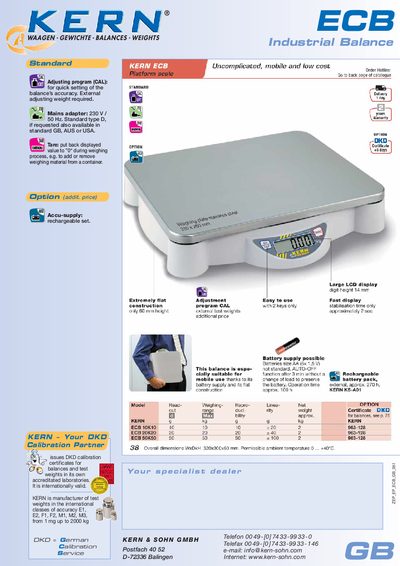

The document introduces the ECB Industrial Balance and its standard adjusting program, including the CAL program for quick accuracy setting, the option for external adjusting weight, the tare function, mains adapter, and rechargeable battery.
The Kern ECB series includes compact, mobile industrial balances designed for weighing up to 10 kg, 20 kg, and 50 kg. Each model features a large LCD display with a 14 mm digit height, optional rechargeable battery packs, and an auto‑off function to preserve battery life.
Key specifications such as overall dimensions (320 mm × 300 mm × 60 mm), permissible ambient temperature (0 °C to +40 °C), and optional external battery operation (up to 270 h) are listed, along with calibration options and environmental protection details.
| Overall dimensions (W×D×H) | 320 mm × 300 mm × 60 mm |
|---|---|
| Permissible ambient temperature | 0 °C … +40 °C |
| LCD digit height | 14 mm |
| Battery type | AA size 1.5 V (6 ×) |
| External battery operation time (option) | ≈ 270 h |
The balances operate in ambient temperatures from 0 °C up to +40 °C.
They use six AA 1.5 V batteries, with an optional rechargeable external pack.
Each unit measures 320 mm wide, 300 mm deep, and 60 mm high.
