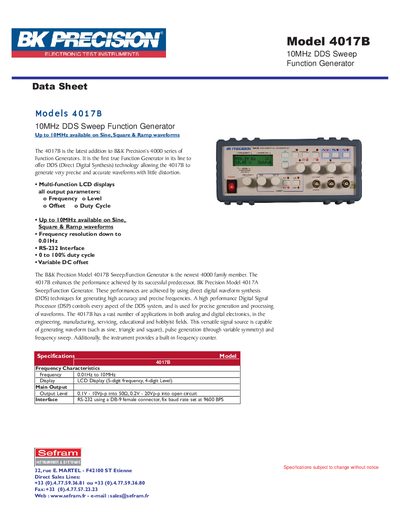

This document introduces the features and characteristics of B&K Precision 4017B 10MHz DDS Sweep Function Generator
The BK Precision 4017B is part of the 4000 series of function generators and introduces Direct Digital Synthesis (DDS) for precise, low‑distortion waveforms up to 10 MHz. It offers sine, square, ramp, triangle and pulse waveforms, a built‑in frequency counter, and a multi‑function LCD that shows frequency, level, offset and duty‑cycle.
The instrument provides a 50 Ω ±10 % output impedance, RS‑232 communication at a fixed 9600 bps, and a range of sweep and VCG modes. Detailed specifications cover frequency resolution, duty‑cycle resolution, rise times, distortion, and output levels for both standard and CMOS/TTL outputs.
| Frequency range | 0.01 Hz to 10 MHz |
|---|---|
| Display type | 5‑digit frequency, 4‑digit level LCD |
| Output impedance | 50 Ω ±10 % |
| Output level (50 Ω load) | 0.1 V – 10 Vpp |
| Output level (open circuit) | 0.2 V – 20 Vpp |
| RS‑232 interface | DB‑9 female, 9600 bps |
| Duty‑cycle resolution | 0 % – 100 % continuously variable, 3‑digit resolution |
| Sine wave distortion | 1 % typical at 1 kHz |
| Square wave rise time | 20 ns |
| CMOS output level | AV to 14 V + 0.5 Vp‑p |
It can generate frequencies from 0.01 Hz up to 10 MHz.
The instrument includes an RS‑232 interface via a DB‑9 female connector at a fixed 9600 bps.
The main output impedance is 50 Ω ± 10 %.
Yes, it offers a continuously variable duty cycle from 0 % to 100 % with 3‑digit resolution.
