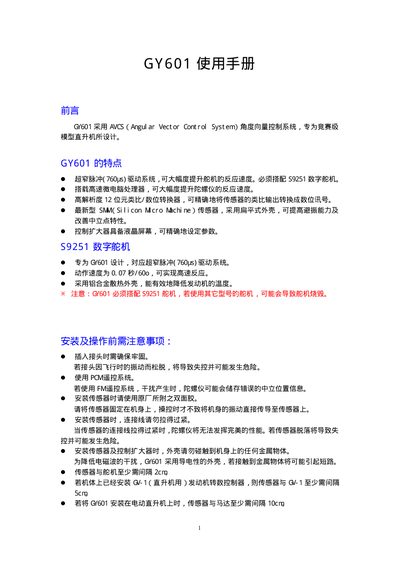

GY601 User Manual, introduces the features of GY601, installation and operation methods, and reminds users to pay attention to issues in the use process.
The GY601 is a gyro controller designed for competition‑level model helicopters. It uses an Angular Vector Control System (AVCS) and a 760 Hz ultra‑pulse drive to improve servo response, and includes a high‑resolution 12‑bit ADC for precise sensor data.
The manual covers component identification, installation steps, sensitivity and mode adjustments, battery checks, and safety warnings such as avoiding metal contact with the aluminum‑alloy heat‑sink housing. This manual is written in Chinese.
| Pulse Drive Frequency | 760 Hz |
|---|---|
| Response Speed | 0.07 s/600 |
| ADC Resolution | 12‑bit |
| Required Servo | S9251 digital servo |
| Heat‑sink Material | Aluminum alloy |
The GY601 must be paired with the S9251 digital servo.
It displays “LowBatt” and flight should be avoided until the battery is recharged.
Switch the gyro to general mode, then quickly move the tail stick left‑right at least three times and return it to neutral.
The housing must not touch any metal parts of the airframe to prevent short‑circuiting.
