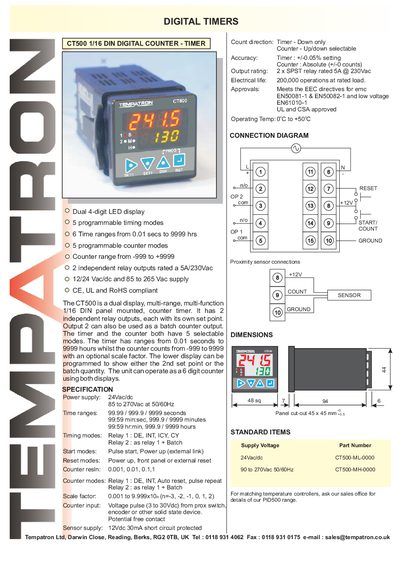

The CT500 is a dual display, multi-range, multi-function 1/16 DIN panel mounted, counter timer. It has 2 independent relay outputs, each with its own set point. Output 2 can also be used as a batch counter output. The timer and the counter both have 5 selectable modes. The timer has ranges from 0.01 seconds to 9999 hours whilst the counter counts from -999 to 9999 with an optional scale factor. The lower display can be programmed to show either the 2nd set point or the batch quantity. The unit can operate as a 6 digit counter using both displays.
The CT500 provides a dual 4‑digit LED display and offers five programmable timing modes with ranges from 0.01 seconds to 9999 hours. It also includes five counter modes covering -999 to +9999 counts, with an optional scale factor and a batch counter output.
The unit features two independent 5 A/230 V AC relay outputs, a 24 V Ac/dc or 85‑270 V Ac supply, CE, UL, RoHS and CSA approvals, and operates from 0 °C to +50 °C. It meets EN50081‑1, EN50082‑1, EN61010‑1 and other EMC directives.
| Power supply | 24 Vac/dc, 85‑270 Vac at 50/60 Hz |
|---|---|
| Display | Dual 4‑digit LED |
| Timing range | 0.01 seconds to 9999 hours |
| Counter range | -999 to +9999 |
| Relay outputs | 2 independent relays, 5 A @ 230 V AC each |
| Operating temperature | 0 °C to +50 °C |
| Timer accuracy | ±0.05 % setting |
| Counter accuracy | Absolute (±0 counts) |
| Electrical life | 200,000 operations at rated load |
| Approvals | CE, UL, RoHS, CSA |
It can be powered from 24 V Ac/dc or from 85 V to 270 V Ac at 50/60 Hz.
The unit has two independent relay outputs, each rated for 5 A at 230 V AC.
The timer can be set from 0.01 seconds up to 9999 hours.
It operates between 0 °C and +50 °C.
