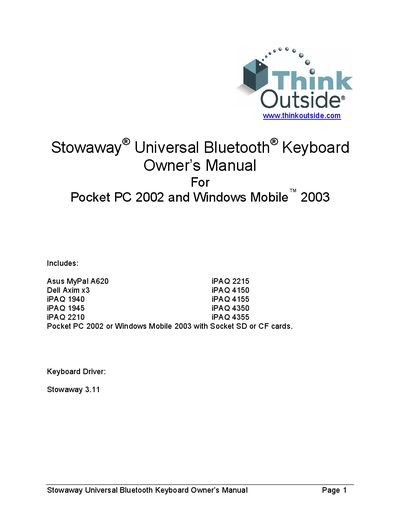

This is the owner's manual for the Stowaway Universal Bluetooth Keyboard. It includes installation and configuration, reconnecting, customizing, and using.
This manual explains how to install the Stowaway Universal Bluetooth keyboard driver on Pocket PC 2002 or Windows Mobile 2003 devices, configure the connection, and use the keyboard’s features. It includes step‑by‑step instructions for enabling the keyboard, pairing it via Bluetooth, and troubleshooting common issues.
The document also provides technical specifications such as dimensions, weight, operating temperature, battery life, and RF characteristics, as well as regulatory compliance information for European markets.
| Dimensions (open, without stand) | 10.28"W x 0.59"H x 3.86"D |
|---|---|
| Dimensions (closed) | 5.47"W x 0.79"H x 3.86"D |
| Weight (including batteries) | 6.42 ounces (182 grams) |
| Operating temperature range | 32°F to 120°F (0°C to 49°C) |
| Typical battery life (continuous operation) | ~120 hours |
| RF output power (max) | 2.5 mW (4 dBm) |
| Bluetooth protocol version | v1.1 compliant |
| Frequency range | 2.4 – 2.4835 GHz |
| Modulation type | GFSK (Gaussian Frequency Shift Keying) |
Tap the Enable button on the Config screen of the keyboard application.
