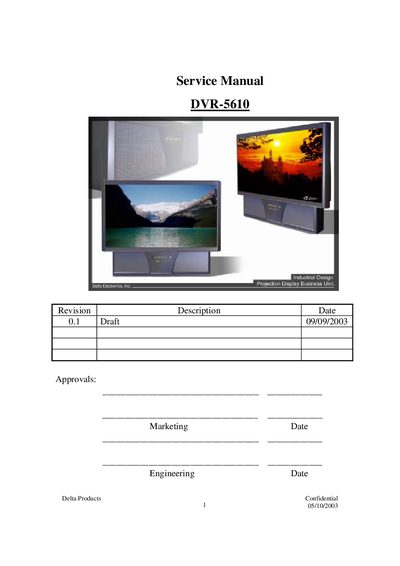

This manual provides information on the engineering specifications, on-screen display function control description, circuit description, trouble shooting flow chart, PCB layout diagram, mechanical assembly, adjustment of picture, recommended spare parts list and download procedure for the DVR-5610.
The DVR-5610 Service Manual provides detailed information on the rear‑projection display unit, including engineering specifications, on‑screen display controls, circuit description, and mechanical assembly. It also contains troubleshooting flow charts, PCB layout diagrams, and a recommended spare‑parts list.
Additional sections cover the download procedure using RS‑232, safety interlocks, environmental requirements, and packaging details. The manual is intended for service technicians and includes wiring diagrams, input/output connector descriptions, and adjustment procedures for picture quality.
| Display type | Rear Projection |
|---|---|
| Resolution | 1280 x 720 |
| Brightness | 400 nits |
| Contrast ratio | 1000:1 |
| Brightness uniformity | >80% ANSI |
| Weight | <130 lb |
| Dimensions (W×H×D) | 1381 mm × 1113 mm × 480 mm |
| Power input | 90‑264 VAC, 50‑60 Hz auto‑ranging |
| Power consumption | 300 W max, 250 W typical |
| Lamp type | Philips UHP‑120 W |
| Audio output power | 15 W × 2 |
| Analog RGB signal level | 0.7 Vpp / 75 Ω |
| Composite video level | 1.0 Vpp / 75 Ω |
| Audio signal level | 0.5 Vrms / 47 kΩ |
The unit consumes up to 300 W maximum and typically 250 W.
The rear panel includes D‑Sub 15‑pin, DVI, three video RCA jacks, three S‑Video mini‑DINs, and two component/HDTV video connectors.
The DLP engine supports a native resolution of 1280 × 720.
