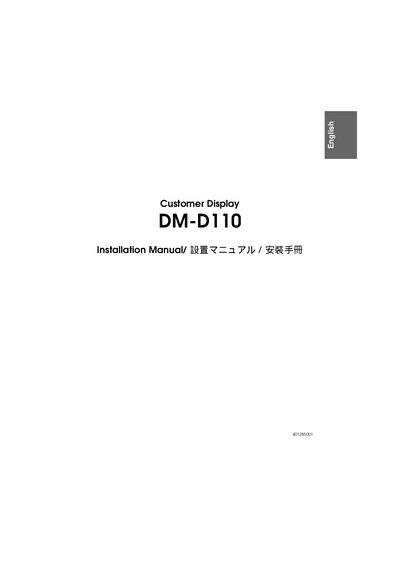

This manual describes how to install Customer Display DM-D110
This manual explains how to unpack, handle, and install the Epson DM‑D110 customer display. It includes safety warnings, cautions about proper power sources, humidity, dust, and handling to prevent injury or equipment damage.
The guide details mounting options, connections to various Epson printers, optional accessories such as the PS‑170 power supply and DP‑105 extension support, self‑test procedures, and technical specifications of the display characters and reliability.
| Alphanumeric characters | 95 |
|---|---|
| International characters | 37 |
| Extended graphics | 128 characters x 12 pages |
| Font | 5 x 7 dot |
| Character size | 3.5 mm x 5.0 mm |
| Character pitch | 5.2 mm |
| MTBF (vacuum fluorescent display) | 20,000 hours |
The display supports 95 alphanumeric characters, 37 international characters, and 128 extended graphics characters across 12 pages.
