This manual provides you with operating, maintenance and installation instructions for your Dometic product.

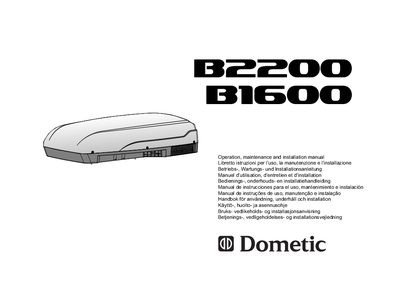

This manual provides the information needed to correctly use, maintain and install the Dometic B1600 and B2200 air conditioners designed for caravans, motorhomes and other mobile vehicles. It explains the system’s components – compressor, condenser, evaporator, fan and heating resistance – and how they work together to supply fresh, de‑humidified air in summer and warm air in winter.
The document includes step‑by‑step installation instructions, user operating tips, safety precautions, troubleshooting guidance and a spare‑parts list. Proper installation, regular maintenance and following the safety advice will ensure reliable performance and compliance with the warranty terms.
| Compressor | a |
|---|---|
| Condenser | b |
| Evaporator | d |
| Heating resistance | e |
Rotate the centre knob anticlockwise to select the desired position, then rotate it clockwise to set the airflow.
Do not obstruct the air inlets or outlets, keep hands and objects away from openings, avoid spraying water, and keep flammable substances away from the unit.
The product is warranted according to Directive 1999/44/EC, but the warranty does not cover failures or damage caused by incorrect installation.
