DS 7000HI-S Series Net DVR User Manual

DS-7000HI-S Series Net DVR User Manual, introduces the features and characteristics of the product, including installation, operation, basic operation guide and parameter setup guide

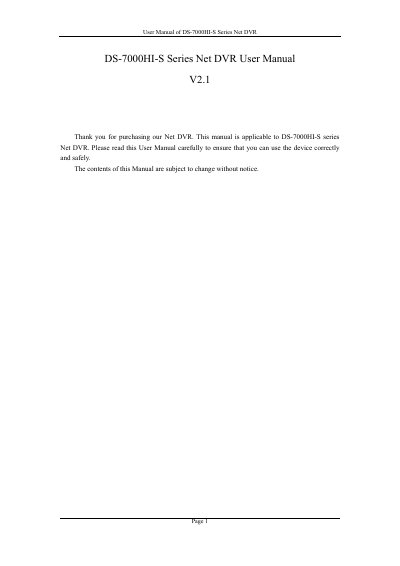

DS 7000HI-S Series Net DVR User Manual - cover page
Brand
DS-7000HI-S
Category
Other
Document type
User Manual
Language
Chinese
Pages
121
File format
PDF
File size
2.6 MB
Published
03 May, 2012
Updated
30 September, 2023
MD5 checksum
62F568CEA66FF9419A787A013717379B
PDF
DS 7000HI-S Series Net DVR User Manual PDF

About this manual

The DS‑7000HI‑S series Net DVR is a digital video recorder designed for surveillance applications. This manual provides a complete guide to installing the device, connecting peripherals, and configuring network and recording settings.

It includes detailed chapters on product introduction, installation steps, operational instructions, parameter setup, utilities, firmware upgrade, and appendices with specifications, recommended peripherals, troubleshooting, and service information. This manual is written in Chinese.

What's inside

  • Product Introduction
  • Installation
  • Operational Instructions
  • Basic Operation Guide
  • Parameters Setup Guide
  • Utilities
  • Firmware Upgrade
  • Specifications
  • Recommended DVR Peripherals
  • Troubleshooting

Specifications

Video compressionH.264
Maximum video input channels16
Maximum audio input channels4
Supported HDD capacity per drive2000 GB
Number of SATA interfaces4
Network interface1 RJ45 10M/100M adaptive Ethernet
RS‑232 interface1 (DB9)

Frequently asked questions

How many SATA hard drives can be installed?

The DVR supports up to four SATA hard drives, each with a maximum capacity of 2000 GB.

What video compression format does the DVR use?

It uses H.264 hardware compression for video.
