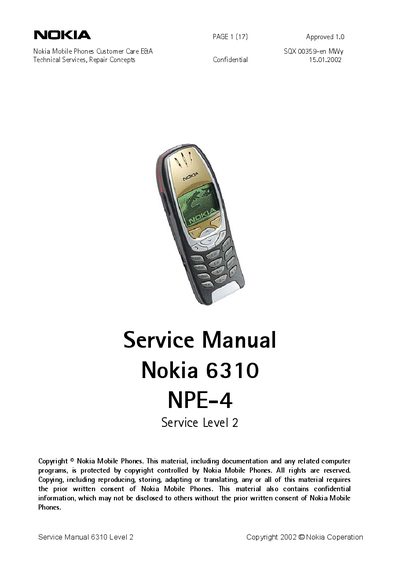

Nokia 6310 NPE-4 Service Manual

About this manual

This Service Manual is intended for Nokia‑authorized service partners performing Level 2 repairs on the Nokia 6310 NPE‑4 handset. It includes detailed exploded views, bill of repair, disassembly steps, and update procedures, as well as safety and ESD precautions required for handling the device.

The document also contains a comprehensive parts list, swap‑unit information, service notes, and guidance on using the GoNoGo tester and battery tester to verify functionality after repairs.

What's inside

• Exploded View
• Bill of Repair
• Disassembly Instructions
• SW‑Update
• General Repair Information
• Main Parts
• Quick Trouble Shooter
• ESD Protection Requirements
• Service Notes
• GoNoGo Tester

Specifications

Frequently asked questions

What safety precautions are required when servicing the Nokia 6310?

All work must be performed at an anti‑static workstation while wearing an anti‑static wrist strap, and only qualified personnel should carry out the service.

Which tools are needed to open the Nokia 6310 handset?

The unit is opened using four T6 screws; a torque driver should not be used for this purpose.

What equipment is used for final testing after a repair?

The Acterna/Wavetek GoNoGo Tester is used for the final functional test, and the Astratec battery tester checks battery capacity.
