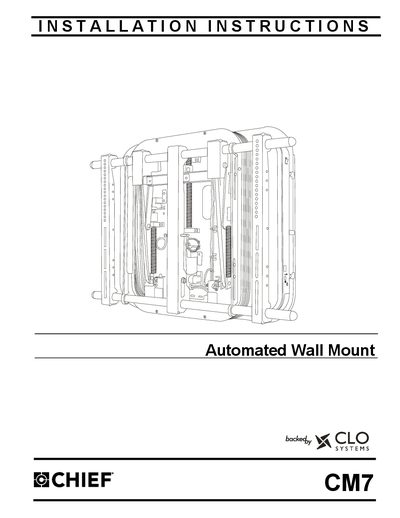

This document is an installation manual for CM7 Automated Wall Mount, providing instructions and precautions for installation.
The Chief CM7 is a motorized wall‑mount designed for 40"‑63" TVs up to 180 lb. It provides tilt, swivel and extension functions controlled by a remote, with safety features such as weight limits and grounding requirements.
The manual covers important safety warnings, grounding instructions, detailed installation procedures for wood stud and concrete walls, setup of TV width and remote control, troubleshooting tips, and routine maintenance guidelines.
| Maximum Weight Limit | 180 lbs (81 kg) |
|---|---|
| Overall Mount Size | 31.5" (w) x 22.75" (h) x 4.5" (d) |
| TV Sizes Accommodated | 40" – 61" (102 – 155 cm) |
| Weight of CM7 | 60 lbs (29.5 kg) |
| Maximum Tilt/Swivel Range (40"‑44.9" TV width) | 7° up, 20° down, 28° left/right |
The CM7 can support up to 180 lb (81 kg) of TV weight.
The TV extends a minimum of 4.6" plus the TV thickness and a maximum of 12" plus the TV thickness from the wall.
The CM7 is designed to mount only on vertical walls, either wood stud or concrete, and must not be installed on ceilings or non‑vertical surfaces.
The CM7 must be connected to a properly grounded outlet as specified in the grounding instructions.
