The new range of Hobut multifunction panel meters feature 96 x 96mm sizes complete with unique blue LED screen, which can be seen in direct sunlight. The range is easy to use, features user-programmable CT & VT ratios, and can be used on any single or 3 phase system with any input voltage without re-programming.

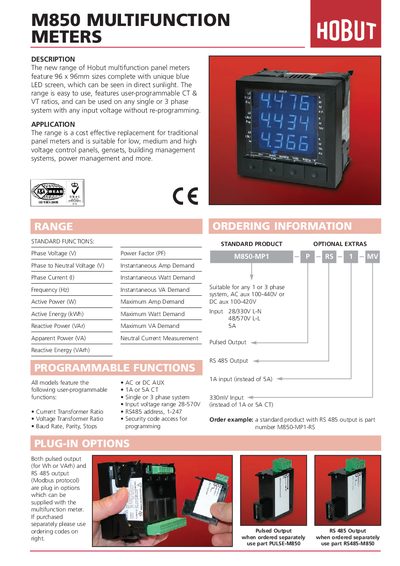

The Hobut M850 is a multifunction panel meter with a 96 × 96 mm blue LED display that remains readable in direct sunlight. It supports user‑programmable CT and VT ratios and can be used on any single‑ or three‑phase system without re‑programming.
The device offers a range of standard functions such as voltage, current, power, energy, and power factor measurements, and optional outputs like pulsed Wh/VArh or RS‑485 Modbus. It meets multiple IEC and EN standards for safety, EMC, and environmental performance.
| Input voltage range | 28‑570 V |
|---|---|
| Rated voltage (L‑N / L‑L) | 28‑330 V L‑N, 48‑570 V L‑L |
| Voltage/Current accuracy | ±0.5 % of reading |
| Power factor accuracy | ±2 % of range |
| Energy class | IEC 1036 Class 1 |
| Burden per phase | 0.5 VA |
| Overload voltage | 800 V continuous |
| Display digits | 3 lines, 9999 |
| Pulse output rating | 10 W, 300 VDC, 500 mA (programmable 40‑200 ms) |
| Weight | 0.35 kg |
Voltage and current readings are accurate to within ±0.5 % of the measured value.
