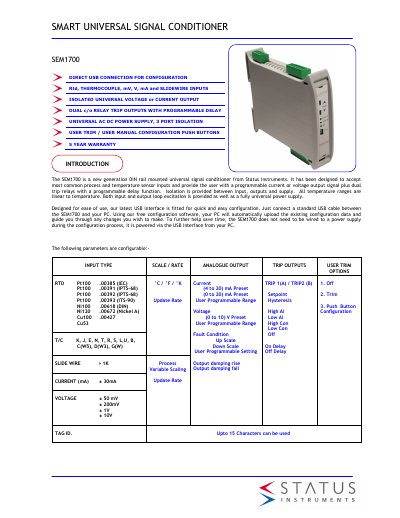

The SEM1700 is a new generation DIN rail mounted universal signal conditioner from Status Instruments. It has been designed to accept most common process and temperature sensor inputs and provide the user with a programmable current or voltage output signal plus dual trip relays with a programmable delay function.
The SEM1700 is a DIN‑rail mounted universal signal conditioner that accepts a wide range of temperature and process sensor inputs and provides programmable current or voltage outputs with dual relay trip functions. It features USB‑based configuration, isolation between inputs, outputs and supply, and a universal AC/DC power supply.
The document details input types, scaling, output ranges, isolation ratings, response times, and user‑trim options, and includes wiring diagrams, specifications, and warranty information.
| Isolation rating (output to input) | 500 V to output, 3750 V to supply and trips |
|---|---|
| Supply voltage range | 20 to 240 V AC or DC |
| Response time | < 500 ms to reach 95 % of final value |
| Warranty | 5 years |
Isolation is 500 V between input and output, and 3750 V between any port and the supply or trip circuits.
The SEM1700 comes with a five‑year warranty.
