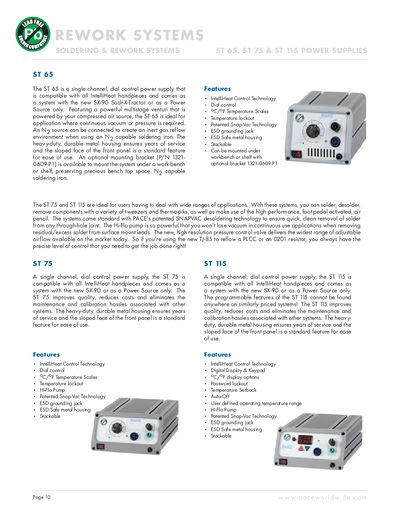

The ST 65 is a single channel, dial control power supply that is compatible with all IntelliHeat handpieces and comes as a system with the new SX-90 Sodr-X-Tractor or as a Power Source only. Featuring a powerful multistage venturi that is powered by your compressed air source, the ST 65 is ideal for application where continuous vacuum or pressure is required. An N2 source can be connected to create an inert gas reflow environment when using an N2 capable soldering iron. The heavy-duty, durable metal housing ensures years of service and the sloped face of the front panel is a standard feature for ease of use. An optional mounting bracket (P/N 1321- 0609-P1) is available to mount the system under a work-bench or shelf, preserving precious bench top space. N2 capable soldering iron.
The ST series are single‑channel digital control power supplies designed for continuous vacuum or pressure applications. They are compatible with all IntelliHegt handpieces and can be used with the new SX90 or a dedicated power source. The units feature IntelliHegt Control Technology, digital displays, temperature lockout, and a high‑flow pump for efficient solder removal.
An optional mounting bracket (P/N 1321‑0609‑P1) allows the system to be mounted under a workbench or shelf, saving bench‑top space. The manual includes a specifications table covering input voltage options, dimensions, weight, and electrical ratings for both 115 V and 230 V models.
| Input Voltage (115 V model) | 115 V |
|---|---|
| Input Voltage (230 V model) | 230 V |
| Dimensions (115 V model) | 104 mm H × 130 mm W × 152 mm D |
| Weight (115 V model) | 2.3 kg (5 lb) |
| Weight (230 V model) | 4 kg (2 lb) |
| Voltage Rating (type 2) | 127 VAC, 30/60 Hz, 120 W max |
The units employ IntelliHegt Control Technology with digital control and temperature lockout features.
The power supplies can operate from either a 115 V or a 230 V power source.
The 115 V model measures 104 mm high, 130 mm wide and 152 mm deep.
