This document provides safety precautions and repair methods for Philips Consumer Electronics Company's equipment, emphasizing the importance of proper service for safe and reliable operation.

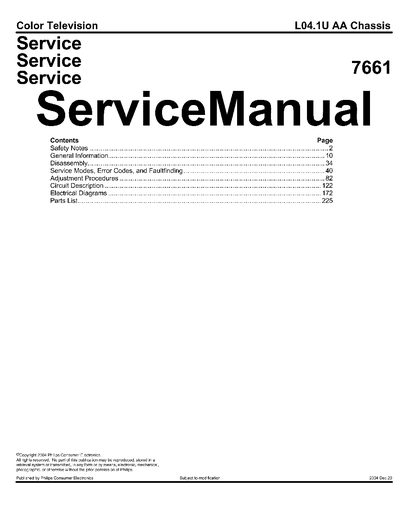

This service manual provides safety notes, general information and detailed disassembly procedures for the Philips 7661 color television. It includes service modes, error codes, fault‑finding steps and adjustment procedures.
The document also contains circuit descriptions, electrical diagrams and a comprehensive parts list, along with safety guidelines such as using a separate isolation transformer and performing leakage current checks.
| Cold‑check leakage resistance | 1 MΩ – 5.2 MΩ |
|---|---|
| Maximum leakage current | 0.5 mA |
| Maximum test voltage | 0.75 V |
A separate isolation transformer must be used when servicing the unit.
The leakage current must not exceed 0.5 mA.
