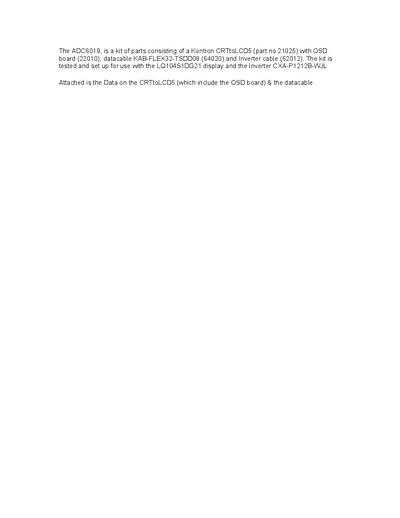

The ADC6019 is a kit of parts consisting of a Kontron CRTtoLCD5 (part no 21025) with OSD board (22010), datacable KAB-FLEX32-TSDD08 (64020) and Inverter cable (62012). The kit is tested and set up for use with the LQ104S1DG21 display and the Inverter CXA-P1212B-WJL.
The ADC6019 kit consists of a Kontron CRTtoLCD‑5 module, an OSD board, the KAB‑FLEX32‑TSDD08 datacable and an inverter cable. The manual provides detailed information on the cable’s connectors, pin assignments, layout dimensions and wiring requirements for connecting SVGA panels to Kontron flat‑panel controllers.
The document also includes warranty information, technical support contacts, revision history and schematics. It is intended for system integrators and service technicians who need to install or troubleshoot the cable within the ADC6019 kit.
| Part number | 64020 |
|---|---|
| Cable length | 250 mm |
| Flatfoil cable contacts | 32 contacts, 0.5 mm pitch |
| Flatfoil connector pitch | 0.5 mm |
The part number is 64020.
The flatfoil cable has 32 contacts.
The connector pitch is 0.5 mm.
The cable length is 250 mm.
