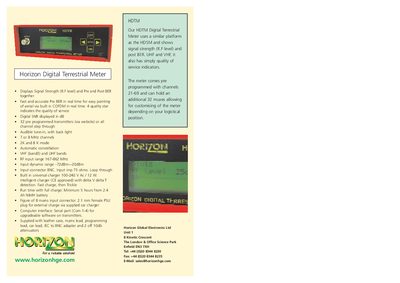

This file introduces the features and characteristics of the Horizon Digital Terrestrial Meter HDTM product
The Horizon HDTM Digital Terrestrial Meter displays signal strength (R.F level), pre‑ and post‑BER, and a quality‑of‑service indicator for VHF and UHF bands. It supports 7 or 8 MHz channels, 2 K and 8 K modes, and can store up to 32 pre‑programmed transmitters or step through all channels.
The device includes a built‑in universal charger (100‑240 V AC, 12 W) with intelligent charging, a 2.4 Ah NiMH battery providing at least 5 hours of runtime, a BNC RF input, a serial port for software upgrades, and comes with a leather case, mains lead, programming lead, car lead, IEC‑to‑BNC adapter, and two 10 dB attenuators.
| RF input range | 167‑862 MHz |
|---|---|
| Input dynamic range | -72 dBm to -20 dBm |
| Channel bandwidth | 7 or 8 MHz |
| Modulation modes | 2 K and 8 K |
| Supported bands | VHF (band 3) and UHF |
| Charger input | 100‑240 V AC, 12 W |
| Battery runtime (full charge) | Minimum 5 hours |
It covers 167 MHz to 862 MHz.
The battery provides a minimum of 5 hours of runtime when fully charged.
It can tune 7 MHz or 8 MHz channels and supports both 2 K and 8 K modes.
A serial port (Com 1‑4) is provided for upgrading the meter’s software.
