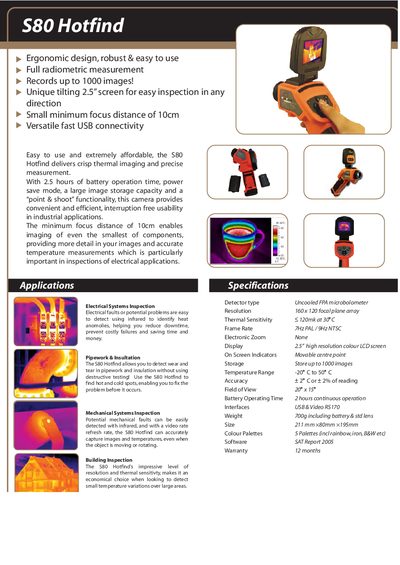

S80 Hotfind is an infrared thermal imager that can detect problems in electrical systems, pipework and insulation, mechanical systems and buildings.
The S80 Hotfind offers ergonomic design and robust operation for industrial applications. It features a 2.5" high‑resolution colour LCD screen, point‑and‑shoot functionality, and fast USB connectivity, allowing easy inspection of components as close as 10 cm.
With a storage capacity of up to 1000 images, a battery life of about 2 hours, and a temperature range of –20 °C to 50 °C, the camera is suited for pipework, mechanical, building, and electrical system inspections, helping detect hot and cold spots quickly.
| Detector type | Uncooled FPA microbolometer |
|---|---|
| Resolution | 160 × 120 |
| Thermal Sensitivity | < 120 mK at 30 °C |
| Frame Rate | 7 Hz PAL / 912 NTSC |
| Screen | 2.5" high‑resolution colour LCD |
| Image storage | Up to 1000 images |
| Temperature range | -20 °C to 50 °C |
| Battery operating time | 2 hours continuous operation |
| Interfaces | USB & Video RS170 |
| Weight | 700 g (including battery & stdlens) |
| Dimensions | 217 mm × 80 mm × 195 mm |
| Colour palettes | 5 palettes (rainbow, iron, B&W, etc.) |
It can store up to 1000 images.
The camera provides about 2 hours of continuous operation.
It operates from –20 °C to 50 °C.
The device has a thermal sensitivity of less than 120 mK at 30 °C.
