The document introduces a product series called GC864, which is one of the smallest GSM/GPRS quad-band modules with industrial connectors in the market. The product has an ultra-compact design and extended temperature range, making it suitable for medium-volume m2m applications and mobile data devices. It also has additional features such as integrated TCP/IP protocol stack and serial multiplexer.

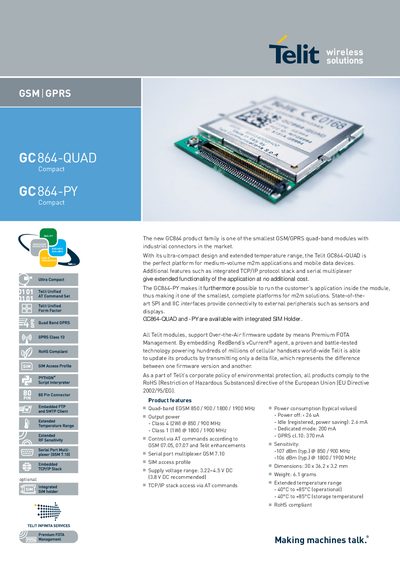

The GC864‑QUAD and GC864‑PY are among the smallest GSM/GPRS quad‑band modules with industrial connectors, offering an ultra‑compact design and an extended temperature range for medium‑volume M2M applications. Features include an integrated TCP/IP protocol stack, serial multiplexer, and for the PY variant, a built‑in Python interpreter with SPI and I²C interfaces for external peripherals.
Both modules support Over‑the‑Air firmware updates via Telit’s Premium FOTA Management and comply with RoHS directives. They provide a range of interfaces such as an 80‑pin Molex connector, UART, audio I/O, and a 50 Ω antenna connector, and are approved for CE, FCC, PTCRB, and other regional certifications.
| Dimensions | 30 x 36.2 x 3.2 mm |
|---|---|
| Supply voltage range | 3.22‑4.5 VDC |
| Weight | 6.7 grams |
| Operating temperature range | -40°C to +85°C |
| Power‑off current | < 26 µA |
| Sensitivity (850/900 MHz) | -107 dBm (typ.) |
| Antenna connector | 50 Ω Murata GSC connector |
| UART baud rate | 300 bps to 115 200 bps |
| Python memory | 1.9 MB NV, 1.2 MB RAM |
It supports quad‑band EGSM 850, 900, 1800 and 1900 MHz.
Yes, all Telit modules support OTA firmware updates via Premium FOTA Management.
The modules operate from –40 °C up to +85 °C.
Yes, the GC864-PY provides a built‑in Python script interpreter for running user code directly.
