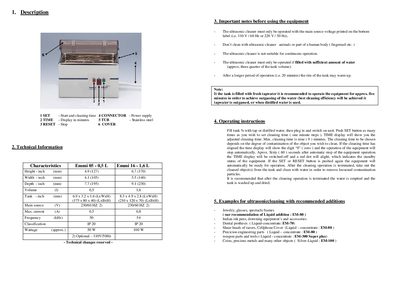

This document is the instruction manual of ultrasonic cleaner. It introduces the function, features, operating methods and precautions of the product.
The EMAG ultrasonic cleaner is a compact, stainless‑steel unit with a digital timer and two push‑buttons for easy operation. Fill the tank with tap or distilled water, set the cleaning time in one‑minute steps (up to nine minutes), and the device will stop automatically.
Two size options are offered (0.5 L and 1.6 L tanks) with optional liquid additives for jewelry, glasses, pens, dental prostheses, and other items. The unit is covered by a two‑year warranty when used according to the instructions.
| Height (0.5 L model) | 4.9 in (127 mm) |
|---|---|
| Width (0.5 L model) | 4.1 in (105 mm) |
| Depth (0.5 L model) | 7.7 in (195 mm) |
| Tank volume | 0.5 L / 1.6 L |
| Main source voltage | 230 V / 60 Hz (optional 110 V / 50 Hz) |
| Maximum current | 0.5 A / 0.8 A |
| Frequency | 50 kHz / 54 kHz |
| Wattage (approx.) | 50 W / 100 W |
The maximum cleaning time is nine minutes.
The unit is operated with two push‑buttons.
Use the voltage printed on the label, either 110 V / 60 Hz or 220 V / 50 Hz.
