The ConnectCore 9C family of interchangeable wired/wireless core modules is a highly integrated, compact ARM® core module family based on the powerful Digi NS9360 processor. It combines main processing functionality and integrated peripherals with on-board secure wireless/wired network connectivity. Built on leading Digi 32-bit NET+ARM technology, the ConnectCore 9C family of modules provides a powerful network-enabled core processor solution. Its unique design combines main processor performance, secure wired/wireless network connectivity and a wide range of features, making it an ideal platform for building a variety of embedded systems.

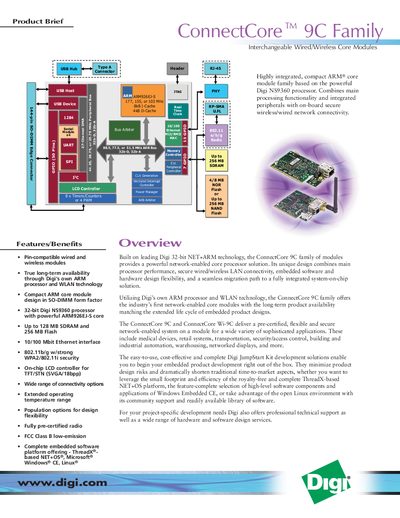

The Digi ConnectCore 9C Family manual provides an overview of the interchangeable wired and wireless core modules, their hardware features, and the development kits available for NET+OS, Embedded Linux and Windows Embedded CE. It outlines the processor, memory, networking, wireless, and environmental specifications for both the ConnectCore 9C and ConnectCore Wi‑9C variants.
The document also details the Digi JumpStart development kits, including hardware accessories, software bundles, and power requirements, and lists regulatory approvals and part numbers for the product line.
| Processor | 32‑bit Digi NS9360 @ 155 MHz (ARM926EJ‑S) |
|---|---|
| Flash Memory | 4 MB NOR or 8 MB NOR or 32‑256 MB NAND |
| SDRAM | 128 MB |
| Ethernet Interface | 10/100 Mbps, RJ‑45 connector |
| Wireless LAN | IEEE 802.11 b/g, up to 54 Mbps |
| Operating Temperature (ConnectCore Wi‑9C) | -30 °C to 75 °C |
| Power Supply (ConnectCore 9C) | 3.3 VDC @ 750 mA max |
| Power Supply (ConnectCore Wi‑9C) | 3.3 VDC @ 900 mA max |
It uses a 32‑bit Digi NS9360 processor with an ARM926EJ‑S core running at 155 MHz.
The modules support WEP (64/128‑bit), WPA/WPA2 with TKIP/CCMP (AES), and enterprise 802.1X modes such as LEAP, PEAP, TTLS, and TLS.
The ConnectCore 9C measures 3.59 in (91.19 mm) long, 2.055 in (52.2 mm) wide, and 0.712 in (18.08 mm) high.
