Vitek VT-PTODKIT Outdoor Kit Installation Manual

This is a Vitek VT-PTZ DOMES outdoor kit installation manual

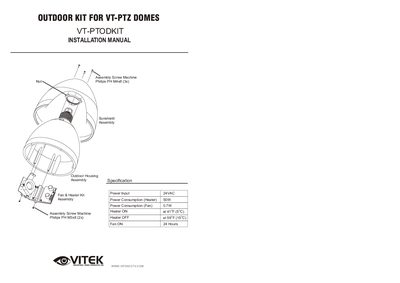

Vitek VT-PTODKIT Outdoor Kit Installation Manual - cover page
Brand
Vitek
Document type
Installation Guide
Language
English
Pages
1
File format
PDF
File size
249 KB
Published
02 May, 2012
Updated
30 September, 2023
MD5 checksum
1B80BD0CBCD77293681067A401DBAB92
PDF
Vitek VT-PTODKIT Outdoor Kit Installation Manual PDF

About this manual

The VT-PTODKIT outdoor kit provides a sunshield assembly, fan and heater for VT-PTZ dome cameras. The kit is powered by a 24 VAC source and includes all necessary screws and hardware for installation.

Key specifications include a heater power consumption of SOW, a fan consumption of 0.7 W, and temperature‑controlled operation (heater on at 41 °F / 5 °C, off at 59 °F / 15 °C). The manual details the assembly steps and component part numbers such as Philips PH M4x8 and PH M3x8 screws.

What's inside

  • Sunshield Assembly
  • Assembly Specification
  • Fan & Heater Kit Power Input
  • Assembly Power Consumption (Heater)
  • Power Consumption (Fan)
  • Heater Temperature Control

Specifications

Power Input24 VAC
Heater Power ConsumptionSOW
Fan Power Consumption0.7 W
Heater ON Temperature41 °F (5 °C)
Heater OFF Temperature59 °F (15 °C)

Frequently asked questions

What is the power consumption of the heater?

The heater consumes SOW.

What is the power consumption of the fan?

The fan consumes 0.7 W.

At what temperature does the heater turn on?

The heater turns on at 41 °F (5 °C).

At what temperature does the heater turn off?

The heater turns off at 59 °F (15 °C).
