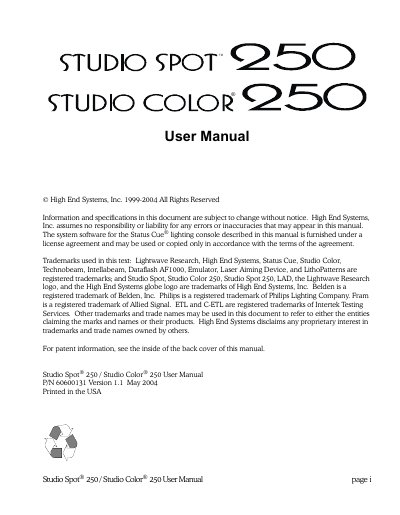

The Studio Spot® 250 / Studio Color® 250 User Manual provides instructions and specifications for High End Systems' lighting equipment products Studio Spot® 250 and Studio Color® 250. The document describes the features and characteristics of the products.
This manual covers the installation, wiring, and safety guidelines for the Studio Spot 250 and Studio Color 250 lighting fixtures. It includes warranty information, recommended safety cables, and instructions for mounting and powering the units.
Detailed specifications are provided for electrical requirements, laser aiming device (LAD) performance, optical components, and optional accessories. The document also explains DMX configuration, menu navigation, preset programming, and maintenance procedures.
| Factory voltage setting | 230V, 50Hz |
|---|---|
| Selectable voltages | 100V 50Hz 3.75 A, 120V 50Hz 3.13 A, 230V 50Hz 1.6 A, 100V 60Hz 3.75 A, 120V 60Hz 3.13 A, 208V 60Hz 1.8 A |
| Rated power | 375 W |
| Fuses | F1 6.3 A/250 V fast, F2 2.5 A/250 V fast, F3 6.3 A/250 V slow |
| Laser class | Class 3a |
| Beam divergence | 0.2 mRad to 0.3 mRad |
| Maximum continuous output | 5 mW at 630‑650 nm |
The product is covered by a two‑year parts and labor limited warranty, and the Laser Aiming Device (LAD) is covered by a six‑month warranty.
The factory setting is 230 V / 50 Hz, and selectable voltages include 100 V / 50 Hz 3.75 A, 120 V / 50 Hz 3.13 A, 230 V / 50 Hz 1.6 A, 100 V / 60 Hz 3.75 A, 120 V / 60 Hz 3.13 A, and 208 V / 60 Hz 1.8 A.
The equipment must be earthed, safety cables should be used when mounting, and a minimum distance of 1 m to flammable objects must be maintained.
