The 802.11b/g SLIP Wireless LAN Module is a fully integrated and qualified wireless device server sub-system, designed to simplify embedding 802.11 connectivity. It is pin compatible with Siemens MC55 GPRS modules, allowing for a single PCB design to support either GPRS or Wireless LAN connectivity. Unlike other wireless modules, it integrates all necessary drivers, protocol stack, security algorithms, and a high-performance antenna. This module is designed for applications with an existing host processor running a TCP/IP stack, providing a fast and efficient way to convert a product from wired to wireless connection. It enables adding wireless internet connectivity to almost any device with a serial port and TCP/IP stack.

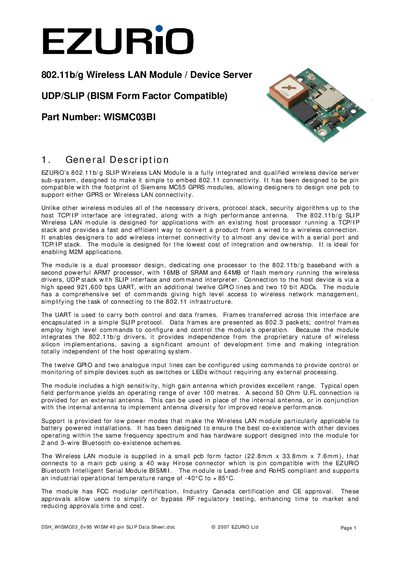

The EZURIO WISMCO03BI 802.11b/g Wireless LAN Module / Device Server provides a fully integrated solution for adding Wi‑Fi connectivity to devices with a serial port and TCP/IP stack. It includes an ARM7 processor, 16 MB SRAM, 64 MB flash, a high‑performance antenna, and supports both internal and external antenna configurations. The module offers a high‑speed UART (up to 921,600 bps), 12 GPIO pins, and two 10‑bit ADC inputs for versatile I/O.
Mechanically the module measures 22.8 mm × 33.8 mm × 7.6 mm and connects via a 40‑pin Hirose DF‑12 board‑to‑board connector that is pin‑compatible with Siemens MC55 GPRS and EZURIO Bluetooth modules. It operates from 3.3 V‑5 V DC, meets FCC, Industry Canada, and CE approvals, and is RoHS compliant, making it suitable for industrial M2M applications.
| Wireless Standards | IEEE 802.11b, IEEE 802.11g |
|---|---|
| Frequency Range | 2.412 – 2.484 GHz |
| Number of Channels (USA) | 11 channels |
| Max Transmit Power (802.11b) | +15 dBm @ antenna connector |
| Receive Sensitivity (802.11b, 1 Mbps) | -91 dBm |
| Data Rate | 54 Mbps (fallback to 1 Mbps) |
| UART Baud Rate | 9,600 – 921,600 bps |
| GPIO Pins | 12 general‑purpose I/O pins |
| ADC Inputs | 2 × 10‑bit, 0‑3.0 V |
| Supply Voltage | 3.3 V – 5.0 V DC |
| Power Consumption (data transfer) | < 250 mA |
| Low‑Power Mode Current | < 5 mA |
| Operating Temperature | -40 °C to +85 °C |
| Regulatory Approvals | FCC modular, Industry Canada, CE |
It uses a high‑speed UART supporting up to 921,600 bps and provides 12 GPIO lines and two 10‑bit ADC inputs.
The module operates from a 3.3 V to 5.0 V DC supply.
Yes, it is pin‑compatible with the Siemens MC55 GPRS modules and EZURIO Bluetooth Intelligent Serial Module BISMII.
