The Desco EMIT SmartLog X3™ is designed for fast, frequent, and accurate testing of ESD personnel grounding items. By depressing the electrode button once, the SmartLog X3™ tests the resistance path limits of the worn wrist strap and both worn ESD footwear independently within three seconds. Test results are electronically stored in the SmartLog X3™ and can easily be downloaded to a PC for logging records and evaluation.

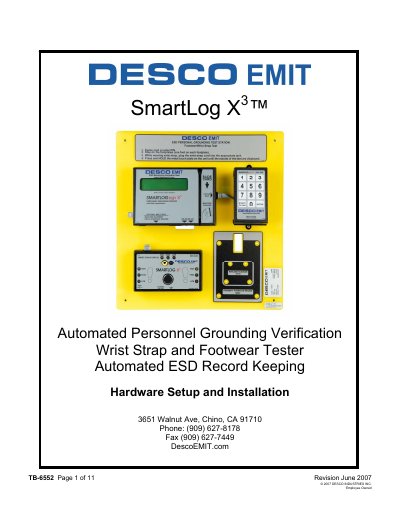

The Desco SmartLog X3 is an automated personnel grounding verification system that tests wrist‑strap and ESD footwear resistance in seconds. The guide explains how to unpack, mount, and connect the unit, configure communication settings, and use optional accessories such as barcode scanners.
Detailed procedures cover single‑unit installation, daisy‑chain networking of multiple SmartLogs, wiring of RS‑232/RS‑485 interfaces, relay terminal usage, and troubleshooting steps for communication or power issues.
| Wrist strap test range | 1 MΩ – 10 MΩ |
|---|---|
| Footwear test range | 1 MΩ – 35 MΩ |
| Power supply | 12 V DC, 500 mA |
| Relay terminal rating | 5 A @ 250 VAC / 30 VDC, 10 A @ 125 VAC |
| Serial communication baud rate | 9600 bps |
| Maximum RS‑232 cable length | 50 ft |
The SmartLog X3 defaults to a wrist‑strap resistance range of 1 MΩ to 10 MΩ.
