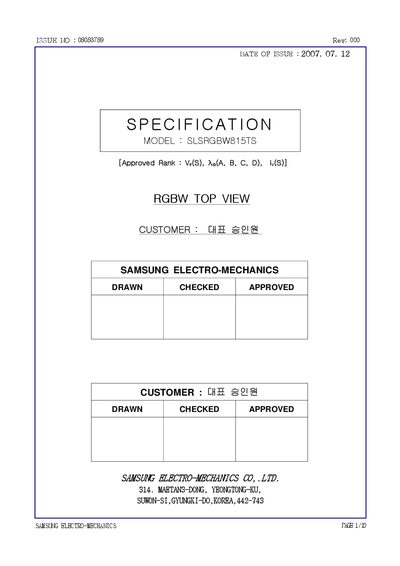

This document is a specification for SLSRGBW815TS, which is a red, green, blue and white LED package with a size of 5.2 * 6.0 * t 1.3mm and a beam angle of 120 degrees, suitable for indoor and outdoor displays.
The Samsung SLSRGBW815TS is a multi‑color LED package featuring red, green, blue and white chips in a compact lead‑frame package (5.2 × 6.0 × 1.3 mm). It is designed for indoor and outdoor display applications and provides a 120° beam angle.
The datasheet lists absolute maximum ratings, electrical characteristics, luminous intensity, color mixing data, mechanical dimensions, reliability test conditions and packaging details, enabling designers to evaluate suitability for their projects.
| Beam Angle | 120° |
|---|---|
| Package Size | 5.2 × 6.0 × 1.3 mm |
| Maximum Forward Current (per color) | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -30 °C to 85 °C |
| Storage Temperature Range | -40 °C to 100 °C |
| Typical Luminous Intensity (Red) | 700 mcd (typ) |
| Typical Luminous Intensity (Green) | 1400 mcd (typ) |
| Typical Luminous Intensity (Blue) | 400 mcd (typ) |
The LED package has a 120° beam angle.
Each color channel (red, green, blue) can be driven up to 30 mA.
It operates from –30 °C to 85 °C.
The typical luminous intensity for the green chip is about 1,400 mcd.
