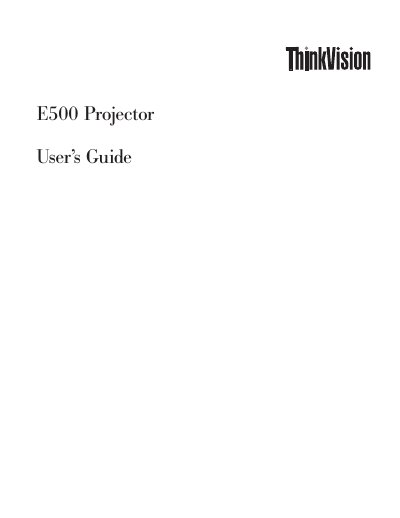

This is a user manual for an E500 projector
This manual covers everything you need to know to safely install, set up, and operate the Lenovo E500 projector. It includes safety information, power‑up procedures, lens cleaning, lamp replacement, and troubleshooting tips.
The guide also lists technical specifications such as operating temperature, humidity ranges, dimensions, weight, lamp type, and power requirements, as well as compliance and warranty information for various regions.
| Dimensions (W×D×H) | 280 x 205 x 97 mm (11.0 x 8.1 x 3.8 in.) |
|---|---|
| Weight (unpacked) | 2.4 kg (5.4 lbs) |
| Focus range | 1.5 to 7 m (4.9 to 23 ft) |
| Lamp type | VIP 200W |
| Input power requirements | 100‑240 V AC, 50‑60 Hz, 2.8 A |
| Ceiling‑mount capacity | Minimum 15.5 kg (34 lbs), UL tested |
Refer to Appendix A, which provides instructions for cleaning the lens.
The projector uses a VIP 200W lamp.
It requires 100‑240 V AC, 50‑60 Hz, drawing 2.8 A.
Yes, it is UL‑tested for ceiling mounting with a minimum capacity of 15.5 kg (34 lbs).
