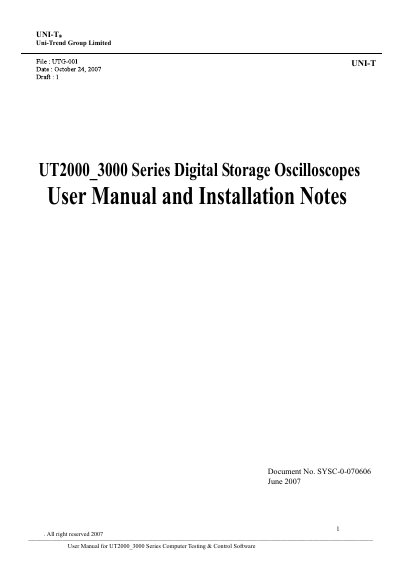

This manual introduces the use of UNI-T UT2000_3000 series digital storage oscilloscope computer testing and control software, including software installation, setting, connection and use.
The UT2000_3000 Series Computer Testing & Control Software enables communication between a PC and the UT2000_3000 digital storage oscilloscope via serial or USB. It provides remote control, waveform display, and data sampling functions for signal analysis.
The manual explains how to install the driver and software, operate the interface controls, and resolve common prompts and errors. Detailed instructions cover USB and serial interface usage, channel settings, and troubleshooting steps such as checking connections and configuration.
| Oscilloscope model | UT2000_3000 Series |
|---|---|
| Required PC OS | Windows 2000/XP |
| Minimum RAM | 16 MB |
| Display requirement | SVGA display or better |
| Interface options | RS‑232 serial or USB |
| Probe attenuation options | 1X, 10X, 100X, 1000X |
Run the installer, click [Next] through the wizard, and finish by clicking [Finish (F)] once the installation completes.
Select USB on the real‑time control panel, turn the equipment ON, and enable Data Transmission; the indicators will light up when the function is active.
Check the serial or USB configuration, verify the oscilloscope power plug is properly connected, ensure the cable connections are correct, then restart the software.
