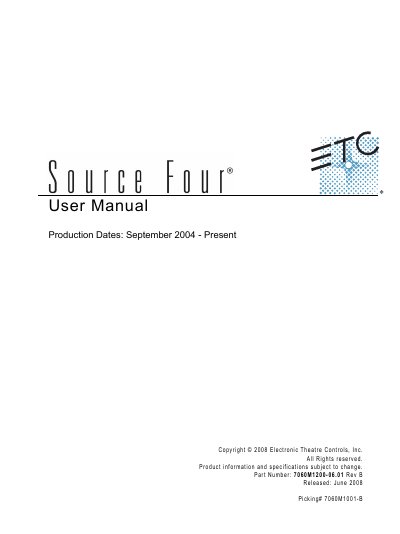

This document is the user manual for Source Four® HPL spotlight, which mainly introduces the basic composition, fixture information, replacement of HPL lamp, and fixture adjustment of the light fixture
This manual covers the basic assembly of the Source Four fixture, including the yoke, barrel assembly, color frame, and safety cable. Detailed diagrams and step‑by‑step instructions guide users through installing the color frame, adjusting the yoke, and securing the fixture safely.
The document also includes lamp information, a comprehensive HPL lamp table, and procedures for safely replacing HPL lamps. Safety warnings, cleaning guidelines, and recommendations for lens tubes and gel extensions are provided to ensure reliable operation and long lamp life.
| Lamp voltage options | 115 V, 120 V, 230 V, 240 V |
|---|
First disconnect power, then loosen the knurled bolt, remove the housing, handle the lamp by the base, align it with the retention brackets, push it in, secure with the retaining clip, and re‑install the housing.
Do not mount the fixture on or near combustible surfaces, never operate without a lens, always lock the color frame retaining clip, and use only HPL lamps to maintain UL/cUL compliance.
Only HPL (High‑Pressure Mercury) lamps are approved; using other lamp types voids UL/cUL safety compliance and the warranty.
