It introduces the features of the temperature controlled soldering station, including the temperature control range, power supply voltage, power and so on.

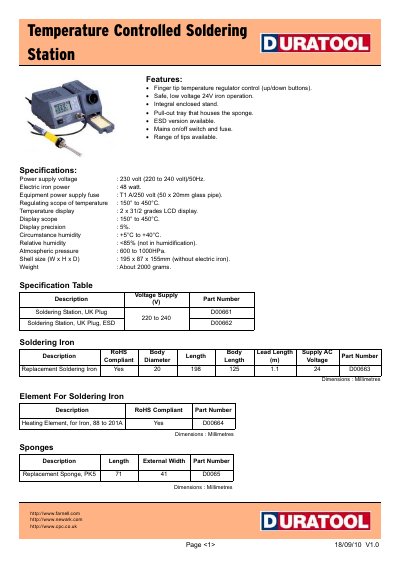

The Duratool D00661 soldering station provides fingertip temperature regulation, a low‑voltage 24 V iron, an integral stand, pull‑out tray, and optional ESD version. It supports a range of tip types and includes a mains on/off switch with fuse.
Key specifications include a 230 V power supply, 48 W iron power, temperature range of 150 °C to 450 °C, LCD display with 5 % precision, and a compact shell measuring 195 × 87 × 155 mm and weighing about 2 kg.
| Power supply voltage | 230 V (220‑240 V) / 50 Hz |
|---|---|
| Electric iron power | 48 W |
| Temperature range | 150 °C to 450 °C |
| Temperature display | 2 × 3½‑grade LCD |
| Display precision | 5 % |
| Shell size (W × H × D) | 195 × 87 × 155 mm |
| Weight | ≈ 2000 g |
The station can be set from 150 °C up to 450 °C.
The iron consumes 48 watts of power.
It operates on a 230 V supply (220‑240 V) at 50 Hz.
