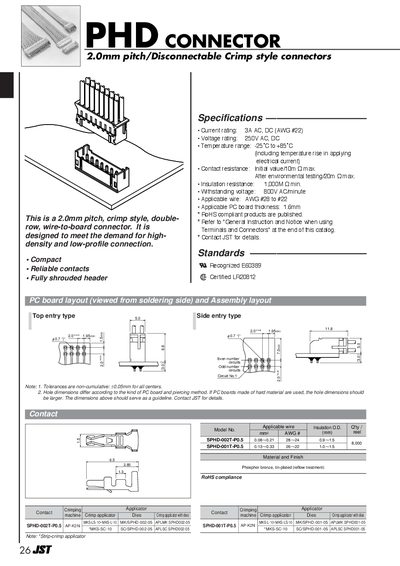

This is a 2.0mm pitch, crimp style, double-row, wire-to-board connector. It is designed to meet the demand for high-density and low-profile connection. Features include compact size, reliable contacts, and a fully shrouded header.
The PHD series are 2.0 mm pitch, crimp‑style, double‑row wire‑to‑board connectors designed for high‑density, low‑profile connections. They are available in both top‑entry and side‑entry configurations and feature fully shrouded headers.
Key specifications include a 3 A current rating (AC/DC, AWG #22), 250 V voltage rating (AC/DC), operating temperature from –25 °C to +85 °C, low contact resistance, high insulation resistance (1 000 MΩ min), and an 800 V withstanding voltage. The connectors accept AWG #28‑#22 wire, fit 1.6 mm PC‑board thickness, and are RoHS compliant.
| Current rating | 3 A AC, DC (AWG #22) |
|---|---|
| Voltage rating | 250 V AC, DC |
| Temperature range | -25 °C to +85 °C |
| Contact resistance | Initial value/10 mΩ max, after testing/20 mΩ max |
| Insulation resistance | 1 000 MΩ min |
| Withstanding voltage | 800 V AC/minute |
| Applicable wire | AWG #28 to #22 |
| Applicable PCB thickness | 1.6 mm |
| Pitch | 2.0 mm |
| RoHS compliance | Yes |
The connector is rated for 3 A AC and DC (AWG #22).
It can handle up to 250 V AC and DC.
The connector operates from –25 °C to +85 °C.
Yes, the product is RoHS compliant.
