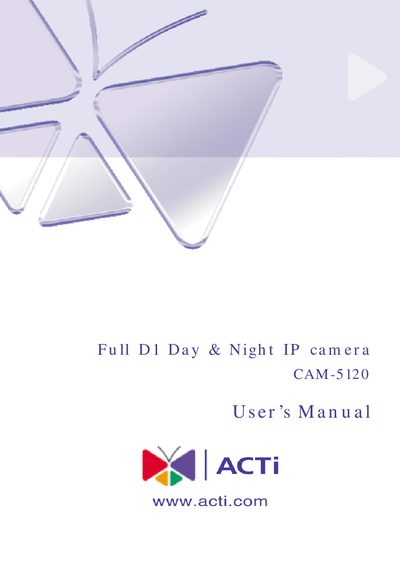

This document is the user manual of ACTi CAM-5120 IP camera. It mainly introduces the features and usage of the product.
This manual covers the CAM-5120 IP camera, a Full D1 (4 CIF) resolution device with a 1/3" SONY Exview CCD sensor and MPEG‑4 ASP compression. It explains safety precautions, package contents, and key features such as automatic color/monochrome switching, QoS‑enabled streaming, and digital time‑code embedding.
Installation and configuration sections guide users through basic connections, network setup (LAN/WAN with low‑latency PPPoE), camera settings, firmware upgrades, and system management tasks like saving/rebooting and logging out. The document also includes troubleshooting tips and regulatory compliance information.
| Resolution | Full D1 (4 CIF) |
|---|---|
| TV Lines | 480 TV lines |
| Frame Rate (NTSC) | 30 fps (720 × 480) |
| Frame Rate (PAL) | 25 fps (720 × 576) |
| Image Sensor | 1/3" SONY Exview CCD |
| Compression | MPEG‑4 Advanced Simple Profile (ASP) |
| Network Ports | Two RJ‑45 connectors (WAN & LAN) |
| WAN Feature | Low latency PPPoE support |
| Digital Time Code | Embedded in MPEG stream |
Press the [Save and reboot] button on the Main Setup page, wait about 30 seconds, and watch the Action LED indicate when the reboot is finished.
Click the [Logout] button on the Main Setup page; the interface returns to the Login page.
The camera provides two RJ‑45 connectors: one for WAN and one for LAN, with low‑latency PPPoE support on the WAN port.
