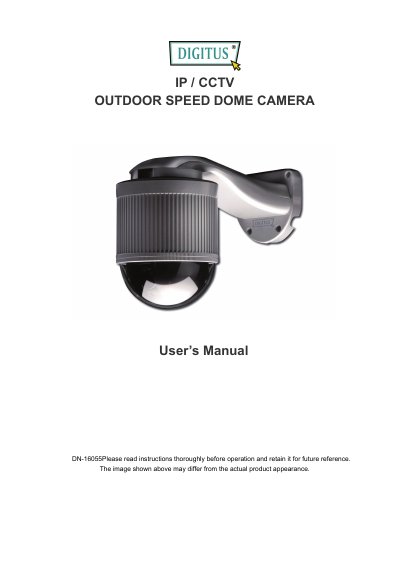

This document is the user manual for the IP / CCTV Outdoor Speed Dome Camera, providing instructions for operation and information about the product's appearance.
This manual covers the DN-16055 PTZ network camera, a high‑performance outdoor speed dome camera with 22× optical zoom, intelligent auto‑tracking, and multiple network protocols for MPEG‑4 or MJPEG video transmission. It includes safety cautions, product description, package contents, and detailed specifications such as power requirements, video output, and environmental limits.
Installation instructions guide you through mounting the camera, connecting power, video, audio, and network cables, and configuring the device via the supplied Video Viewer software. The guide also explains how to assign an IP address, access live view, set up recording, and use advanced features like motion detection and alarm notifications. This manual is written in Chinese.
| Optical Zoom | 22× |
|---|---|
| Pan Range | 360°/s |
| Tilt Range | 90°/s |
| Resolution | 480 TVL |
| Power Supply | 12VDC, 1A |
| Network Speed | 10/100 Base‑T Ethernet |
| Video Compression | MPEG‑4 / MJPEG |
| Audio Compression | uLaw, 128 kbps |
| Number of Online Users | 10 |
A DC 12 V, 1 A adapter is required.
Up to 10 users can be online at the same time.
The camera provides a 1.0 Vp‑p, 75 Ω video output.
