ZKIVision ZKSD Series Intelligent High-Speed Dome IP Camera User Manual

This document introduces the functional features and IE interface operations of the ZKIR IPC.

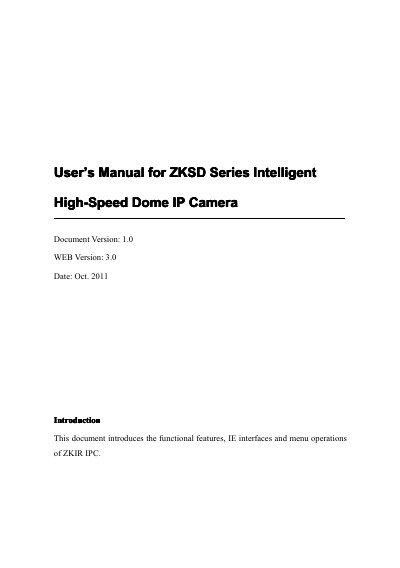

ZKIVision ZKSD Series Intelligent High-Speed Dome IP Camera User Manual - cover page
Brand
ZKSD
Category
Other device
Document type
User Manual
Language
English
Pages
76
File format
PDF
File size
4.5 MB
Published
02 May, 2012
Updated
30 September, 2023
MD5 checksum
C9F23F8061B977195C930A5F2A1C1F6D
PDF
ZKIVision ZKSD Series Intelligent High-Speed Dome IP Camera User Manual PDF

About this manual

The ZKSD series is a high‑speed dome IP camera equipped with CCD sensors, multiple zoom optics, and built‑in temperature control for indoor and outdoor surveillance. It supports continuous horizontal rotation up to 250°/s and vertical rotation up to 100°/s, with optional audio input, alarm, and PTZ control functions.

This manual covers product description, hardware installation, network configuration, video/audio settings, PTZ and alarm setup, advanced options, and troubleshooting. Each section provides step‑by‑step procedures and parameter tables to help users install and operate the camera safely and efficiently.

What's inside

  • Overview
  • Product Description
  • Technical Parameters
  • Installation and Network
  • PTZ Settings
  • Alarm Settings
  • Audio & Video Settings
  • Advanced Settings
  • Troubleshooting

Specifications

Maximum horizontal preset speed250°/s
Maximum vertical preset speed100°/s
Power consumption (no heater)30W
Operating temperature-40~+55 °C
Input powerAC 24 V, ≥2 A

Frequently asked questions

What is the maximum horizontal rotation speed of the camera?

The camera can rotate horizontally at a maximum speed of 250° per second.

What power supply is required for the camera?

The camera requires an AC 24 V power supply with at least 2 A current.
