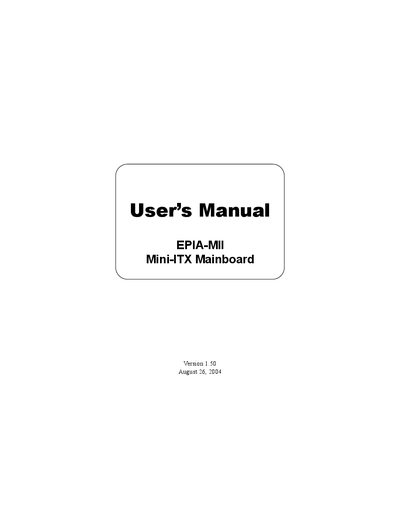

This document is the user manual for the EPIA-MII Mini-ITX Mainboard Version 1.50, providing detailed information about the features and characteristics of the motherboard.
The EPIA-MII is an ultra‑compact Mini‑ITX mainboard designed by VIA Technologies for embedded systems. It features an integrated VIA processor, low power consumption, and a size that occupies only about two‑thirds of a FlexATX board.
This manual covers safety precautions, box contents, detailed specifications, step‑by‑step installation of CPU, memory and power supply, BIOS configuration, and the driver utilities included on the accompanying CD.
| Form factor | Mini‑ITX |
|---|---|
| Power supply voltage | 110 V / 220 V |
| Size relative to FlexATX | ≈66 % of FlexATX size |
| Embedded processor | VIA Processor |
| Supported IDE speeds | ATA‑66 / ATA‑100 / ATA‑133 |
Read the safety instructions carefully, keep the board away from humidity, place it on a flat surface, and avoid covering ventilation openings.
The CD includes the VIA 4in1 Drivers (ATAPI, AGP VxD, IRQ Routing Miniport, INF), as well as separate VGA, Audio, LAN, USB 2.0, and TV‑out utilities.
The mainboard can operate on either 110 V or 220 V; select the appropriate voltage before connecting the power cord.
The box contains one VIA mainboard, a quick installation guide, a floppy ribbon cable, an ATA‑66/100/133 IDE ribbon cable, a V/O bracket, and a driver utilities CD.
