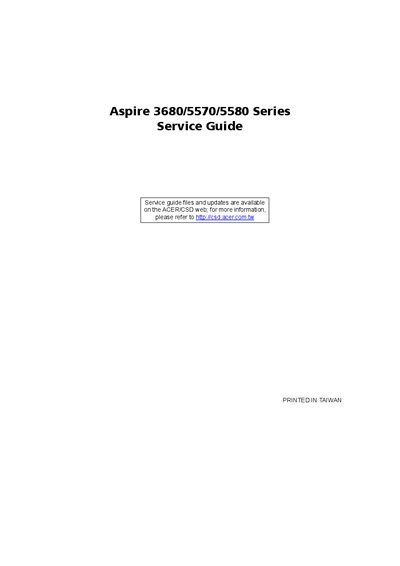

Acer Aspire 3680/5570/5580 Series Service Manual

This is a service guide for Acer Aspire 3680/5570/5580 series products

Brand: Aspire
Document type: Service Manual
Language: English
Pages: 147
File format: PDF
File size: 4.5 MB
Published: 02 May, 2012
Updated: 30 September, 2023
MD5 checksum: C44797F1E353870C6F68B1A70A10F2F0
PDF: Acer Aspire 3680/5570/5580 Series Service Manual PDF

About this manual

This Service Guide covers the basic configuration of Acer's Aspire 3680, 5570, and 5580 notebook series. It includes system specifications, block diagrams, and details on utilities and management features.

The manual also contains step‑by‑step disassembly instructions, troubleshooting procedures, jumper and connector locations, a full FRU (Field Replaceable Unit) list, and appendices with model definitions, test‑compatible components, and online support information.

What's inside

System Specifications
System Utilities
Machine Disassembly and Replacement
Troubleshooting
Jumper and Connector Locations
FRU List
Appendices
