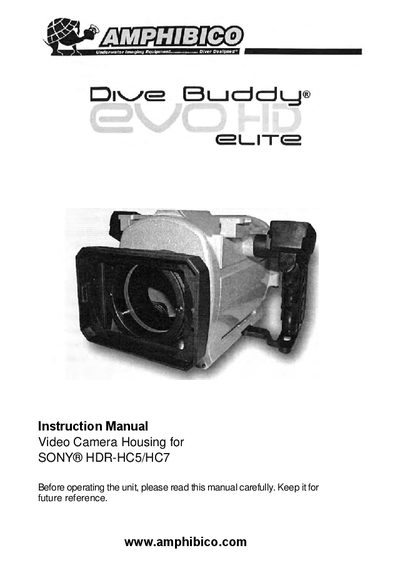

This instruction manual introduces the features and characteristics of the Amphibico Dive Buddy EVO HD underwater camera housing, including the housing's features and operations.
This manual covers the Amphibico Dive Buddy EVO HD housing, a marine‑grade aluminum enclosure with a 3.5" rear LCD monitor and electronic controls for the Sony HDR‑HC5/HC7 camcorder. It explains unpacking, preparation, camera installation, and operation of the housing’s buttons, zoom, focus, and mode functions.
The guide also details specifications, maintenance procedures such as O‑ring servicing, optional accessories, and general shooting tips. Users are advised to test the housing for water‑tightness before installing the camcorder and to follow the safety notes throughout.
| Construction | Marine Grade Aluminum, fully anodized with polyurethane paint |
|---|---|
| Internal Filter | UR Pro Blue Water Filter (52 mm) |
| External Hydrophone | Included for high‑frequency sounds |
| Weight (land) | 10.6 lb (4.80 kg) fully loaded |
| Weight (seawater) | 14.1 oz negative buoyancy |
| Dimensions | 12" × 10.5" × 6.5" (L × W × H) |
| Operating Depth | Pressure tested to 330 ft (100 m) |
| LCD Monitor | 3.5" display, 480 × 234 dots, contrast 150:1 |
Press the trigger button to turn the unit on; press the trigger again while holding the MODE button to turn it off.
The housing is pressure tested to a depth of 330 ft (100 m).
The housing weighs 10.6 lb (4.80 kg) when fully loaded with the camera battery and lens.
