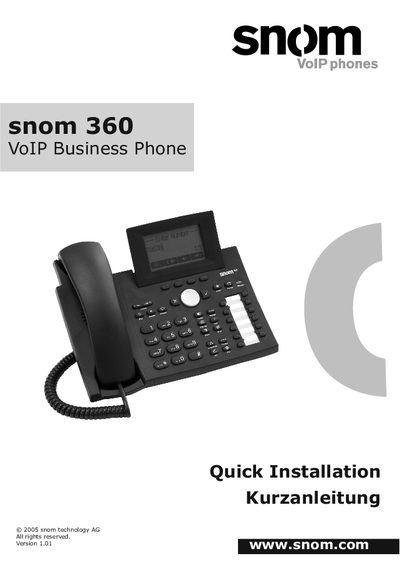

snom 360 VoIP Business Phone Quick Installation Kurzanleitung is a VoIP business phone launched by snom technology AG. This document provides instructions for installing and operating the product.
The snom 360 VoIP Business Phone is supplied with a footstand, handset, handset cable and an optional power supply. This guide explains how to place the phone on a stable surface, connect the handset cable, and avoid overheating by keeping vents clear.
Two power options are available: an external 5 V power supply or Power over Ethernet (IEEE 802.3af). The guide also details wall‑mounting steps, including detaching the footstand, using the provided template for drilling, and securing the phone with half‑round head screws (4.5 mm shaft, 8.5 mm head). Safety notes warn against mounting the optional keypad on the wall and advise careful handling of the display and hinge.
| Power supply options | External 5 V or Power over Ethernet (IEEE 802.3af) |
|---|---|
| Wall‑mounting screw size | Half‑round head screws, shaft diameter 4.5 mm, head diameter 8.5 mm |
| Delivery contents | Base unit with display and keypad, handset, handset cable, optional power supply |
It can be powered either with the included external 5 V power supply or via Power over Ethernet (IEEE 802.3af) through the network cable.
The package contains the base unit with display and keypad, a handset, a handset cable, and an optional power supply.
No, the additional keypad must not be mounted on the wall; it should be placed on an even, horizontal surface together with the phone.
