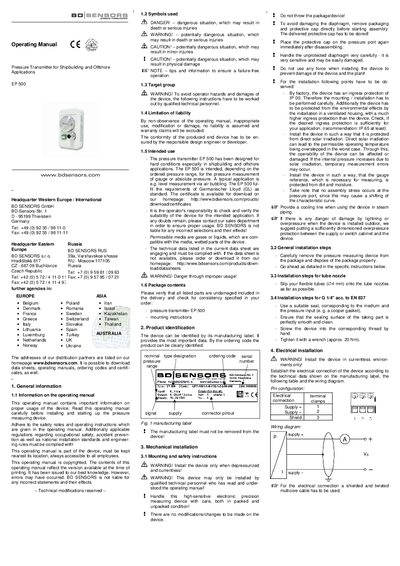

This is an operating manual of BD SENSORS EP 500 pressure transmitter
This operating manual provides all necessary information for the proper use of the BD Sensors EP 500 pressure transmitter. It includes safety notes, regulatory compliance, and detailed instructions for mechanical and electrical installation, start‑up, and service procedures.
The document also describes maintenance‑free operation, recommended ingress protection, wiring diagrams, output signal specifications, and warranty and disposal guidelines. It is intended for qualified technical personnel working in shipbuilding and offshore environments.
| Pressure range (input) | 0.1 bar |
|---|---|
| Output signal | 4‑20 mA, 2‑wire |
| Supply voltage | 16‑32 VDC |
| Ingress protection (factory) | IP 00 |
| Recommended installation IP rating | IP 65 (minimum) |
| Mounting torque | ≈ 20 Nm |
The EP 500 outputs a 4‑20 mA signal on a 2‑wire connection.
Installation should achieve at least IP 65 protection, although the device ships with IP 00.
Send an email to [email protected] with the device count and request an RMA, then pack the device securely before shipping.
