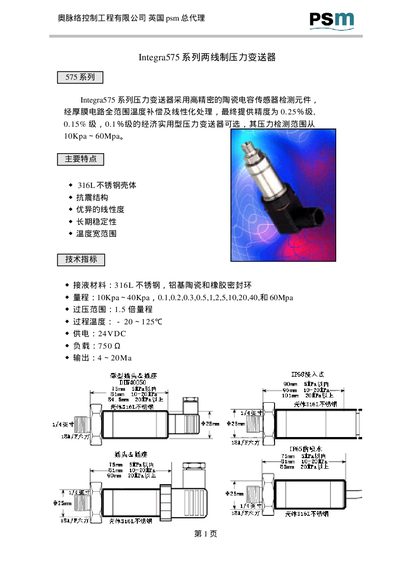

The Integra575 series pressure transmitter adopts a high-precision ceramic capacitive sensor detection element, which undergoes thick film circuit full range temperature compensation and linearization processing. It provides options for economic and practical pressure transmitters with accuracies of 0.25%, 0.15%, and 0.1%. Its main features include a 316L stainless steel housing, shock-resistant structure, excellent linearity, long-term stability, and wide temperature range.
The Integra575 series is a two‑wire pressure transmitter designed for high‑precision measurement with full‑range temperature compensation and linearization. It offers a wide pressure range from 10 kPa up to 60 MPa and is built with a 316L stainless‑steel housing for durability.
Key features include shock‑resistant construction, excellent linearity, long‑term stability, and a wide temperature operating range. The device is powered by 24 VDC and provides a 4–20 mA output signal. Various connection options such as L/4" NPT, L/4" BSP, and 3/4" BSP are supported, and multiple pressure range modules are available. This manual is written in Chinese.
| Supply voltage | 24 VDC |
|---|---|
| Output signal | 4–20 mA |
| Sensor material | 316L stainless steel |
| Over‑pressure range | 1.5 × full scale |
| Operating temperature | -20 °C to 125 °C |
| Pressure range (overall) | 10 kPa – 60 MPa |
| Pressure range module example | 10‑10 kPa |
It operates from a 24 VDC power supply.
The device provides a 4–20 mA current output.
The housing is constructed from 316L stainless steel.
