ATM.1ST pressure transmitter features a compact and robust 316L stainless steel housing, as well as a variety of measurement ranges (0…50 mbar to 0…1000 bar) for a wide range of applications. It also offers calibration for all common pressure units, reverse polarity and short-circuit protection, high EMV stability, and a modular assembly for customized versions.

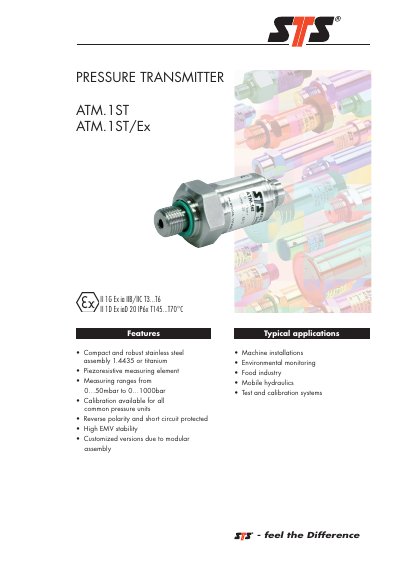

The STS ATM.1ST pressure transmitter is offered in a compact stainless‑steel or optional titanium housing with a piezoresistive measuring element. It provides a wide measuring range from 0 … 50 mbar up to 0 … 1000 bar and is suitable for machine installations, environmental monitoring, food industry, mobile hydraulics and test‑calibration systems.
Key features include reverse‑polarity and short‑circuit protection, high EMV stability, response time under 1 ms, and various ATEX and IP certifications. The device supports multiple pressure units, modular assembly for customized versions, and offers several electrical output options (4‑20 mA, 0‑5 V, 0‑10 V).
| Measuring range | 0 … 50 mbar to 0 … 1000 bar |
|---|---|
| Supply voltage | 9 … 30 VDC (12 … 30 VDC for Ex version) |
| Response time | < 1 ms |
| Accuracy | ≤ ±0.25 % FS (optional ≤0.1 % FS) |
| Temperature range | -40 °C … 150 °C (medium temperature) |
| Overpressure protection | 3 bar (3 × FS) |
| Output signal | 4 … 20 mA (also 0‑5 V, 0‑10 V non‑Ex) |
| Housing material | Stainless steel 1.4435 or titanium (option) |
It can measure from 0 … 50 mbar up to 0 … 1000 bar, with optional ranges in between.
The standard version operates from 9 … 30 VDC, while the Ex version requires 12 … 30 VDC.
Its response time is less than 1 ms (10 … 90 % FS).
It is ATEX certified (II 1G Ex ia IIB/IIC T3…T6, II 1D Ex iaD 20), IP6x, and complies with EN 61000‑4 series EMC standards.
