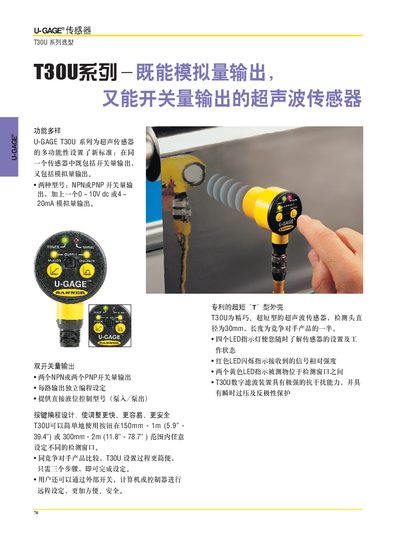

U-GAGE T30U series is an ultrasonic sensor with both analog and switch output. It has dual switch output, button programming design, transient overvoltage and reverse polarity protection.
The T30U series combines analog (0‑10 V dc or 4‑20 mA) and discrete (NPN or PNP) outputs in a compact ultrasonic sensor. It offers selectable detection ranges of 150 mm‑1 m or 300 mm‑2 m, programmable via front‑panel buttons or remote control, and includes LED indicators for status monitoring.
The manual also covers the Q45U and Ultra‑Beam series, detailing model‑specific parameters, wiring options (Euro‑type or cable‑type connectors), environmental ratings (IP67, temperature –20 °C to 470 °C), and installation accessories such as SMB30C brackets. This manual is written in Chinese.
| Detection distance (T30U A‑type) | 150 mm – 1 m |
|---|---|
| Detection distance (T30U B‑type) | 300 mm – 2 m |
| Ultrasonic frequency (short range) | 228 kHz |
| Ultrasonic frequency (long range) | 128 kHz |
| Supply voltage (analog output) | 15 V – 24 V dc |
| Supply voltage (discrete output) | 12 V – 24 V dc |
| Analog output range | 0 V – 10 V dc or 4 mA – 20 mA |
| Maximum discrete output current | 100 mA |
| Response time (A‑type) | 48 ms |
| Response time (B‑type) | 96 ms |
| Ingress protection | IP67 |
| Operating temperature range | -20 °C to 470 °C |
The T30U provides both analog output (0‑10 V dc or 4‑20 mA) and discrete output (NPN or PNP) selectable per model.
The detection window can be programmed using front‑panel buttons for ranges 150 mm‑1 m or 300 mm‑2 m, or remotely via an external switch, computer, or controller.
Both cable‑type (PVC‑sheathed) and Euro‑type plug connectors are offered; cable‑type models can be ordered with a 9 m cable (W/30).
